Glass Fused To Steel Tank for Agriculture Water Storage And Sludge Treatment
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W2016012808 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W2016012808 |
| Corrosion Integrity: | Excellent | Chemical Resistance: | Excellent |
| Relocation Capability: | Yes | Size Change: | Available |
| Dismantle: | Yes | Weather Extremes: | Excellent |
| High Light: | grain storage tanks,large capacity water storage tanks |
||
Product Description

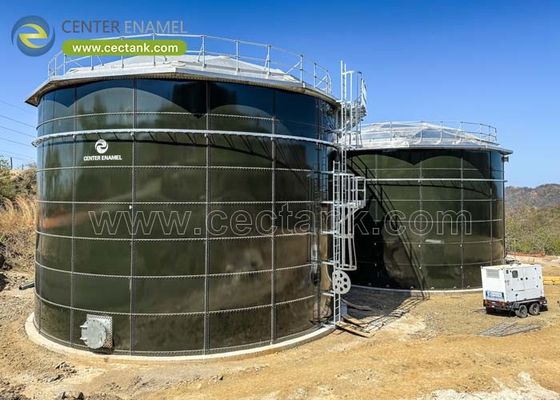

Glass Fused To Steel Tank for Agriculture Water Storage in Sludge Treatment
Description of Water Storage Tank for Agriculture
Glass Fused To Steel Tank for Agriculture Water Storage in Sludge Treatment
This tank is made up of glass fused steel with special sealant & self locking bolts, which are designed for optimum energy efficiency, durability and long lasting performance. They are commonly called “ Glass-Fused-to-Steel ” tank, also “ Enamel Bolted Tank ”.
Application of Agriculture Water Storage Tank
|
Power & Energy |
Wastewater Treatment |
Water Supply and Treatment |
Industrial Dry Bulk Storage |
|
Biogas Biomass |
Buffer Pool |
Potable Water |
Mineral |
|
Aviation Oil |
Aerobic Reactor |
Bitter-brackish Water |
Wood Product |
|
Process Water |
Biological Filter |
Raw Water/Fresh Water |
Chemicals |
|
Boiler Feedwater |
Effluent Treatment |
Water Purifying Tank |
Mining Industry |
|
Fuel Oil |
Regulating Tank |
Disinfecting Water |
Grain/seeds |
|
Kerosene |
Anaerobic Reactor |
Fire-fighting Water |
Foods |
|
Coal Storage |
Leachate Storage |
Saline Water/Brine Water |
Plasthetics |
|
Fly Ash Silo |
Irrigation Water |
Sedimentation Container |
Petrochemicals |
Fundamental Charteristics
Coating Color: dark green, white, blue, color can be customized
Coating Thickness: 0.25~0.40mm,double coating
Acid and alkalinity: Standard sheet PH:3~11
Proof: Special sheet PH:1~14
Adhesion: 3,450 N/cm
Elastic: Same as steel sheet, around 500 Kn/mm
Hardness: 6.0(Mohs)
Service life: >30Years
Holiday test: >1500v
Easy to clean: Smooth,glossy,inert,non adhesive
Corrosion resistance: Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds
Advantage
- short construction period
- superior corrosion resistance, service life is more than 30 years
- low project cost
- tank volume can be easily expanded
- beautiful appearance, color can be customized
- not subject to weather conditions
- no need big installation equipment
- easily expand , dismantle, move
