Automatic GFS Agricultural Water Storage Tanks For Irrigation
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160128003 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160128003 |
| Relocation Capability: | Yes | Freight Cost: | Low |
| Erection Time: | Short | Weather Extremes: | Excellent |
| Impact Resistance: | Excellent | PH Range: | 1~14 |
| High Light: | grain storage tanks,irrigation water storage tanks |
||
Product Description

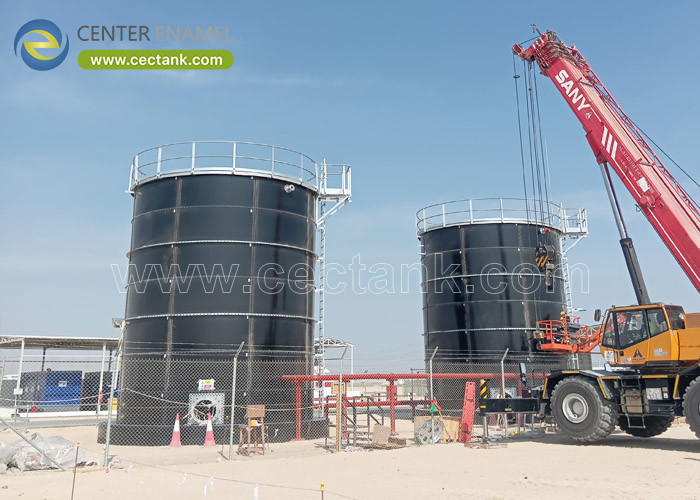

Automatic Agriculture Water Storage Bolted Tanks In GFS For Irrigation Water
Introduction of Agriculture Water Storage Tanks
Automatic Agriculture Water Storage Bolted Tanks In GFS For Irrigation Water.
Center Enamel has always been dedicated in research and development of glass-fused-to-steel tank ( GFS ), which is made up of enamel steel sheet, special sealant and self locking bolts. This kind of tanks is designed for optimum energy efficiency, durability and long lasting performance. In Europe, USA and many other countries, enamel bolted tanks have already more than 100 years’ history, they are commonly used for various kinds of wastewater treatment, petroleum, grains and dry bulk storage.
Specification of Agriculture Water Storage Tanks
|
Category |
Specification |
|
Coating Color |
dark green, white, blue, color can be customized |
|
Coating Thickness |
0.25～0.40mm ,double coating |
|
Acid and alkalinity proof |
Standard sheet PH:3～11 Special sheet PH: 1～14 |
|
Adhesion |
3,450 N/cm |
|
Elastic |
Same as steel sheet,around 500 Kn /mm |
|
Hardness |
6.0 ( Mohs ) |
|
Service life |
≥30Years |
|
Holiday test |
>1500v |
|
Permeability |
Gas / liquid impermeable |
|
Easy to clean |
Smooth, glossy, inert, non adhesive |
|
Corrosion resistance |
Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
Benefit and Advantage
|
1. |
Long life |
|
2. |
Low capital cost |
|
3. |
Low maintenance costs |
|
4. |
Rapid installation |
|
5. |
Ease of transport to site |
|
6. |
Flexibility to re-model, extend, dismantle and relocate |
Application of Agriculture Storage Tank
- Potable Water and Utility Projects
- Fire Protection & Sprinkler Systems
- Groundwater & Water Well Assistance Systems
- Livestock Sustenance Systems
- Food & Dairy Processing Systems
- Dry Feed & Grain Storage Silos
- Industrial Chemical & Mixing Tanks
- Wastewater Storage
- Irrigation Water Supply
