10000 / 10K Gallon Steel Water Tank / Glass Lined Water Storage Tank for Biogas Plants
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012811 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012811 |
| Permeability: | Gas And Liquid Impermeable | Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height |
| Elastic: | Same As Steel Sheet , Around 500KN/mm | PH: | 1 - 14 |
| Serive Life: | More Than 30 Years | Coating Color: | Dark Blue, Dark Green , White, And Customized |
| Easy Yo Clean: | Smooth, Glossy, Inert, Anti-adhesion | Coating Thickness: | 0.25mm - 0.4mm, Two Coating Internal And External |
| High Light: | glass coated steel tanks,porcelain enamel glass lined tank |
||
Product Description

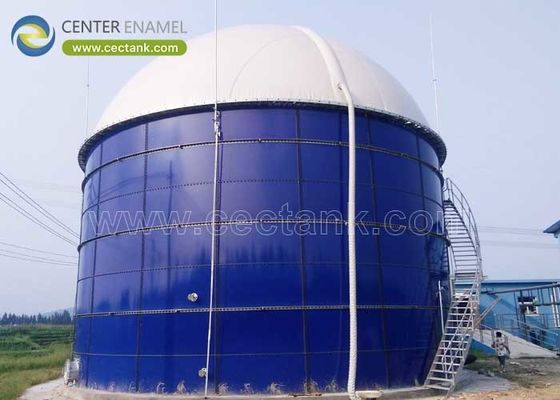

Engineers Available To Service Machinery Overseas Glass Lined Water Storage Tank for Biogas Plants
Description of Glass Lined Water Storage Tank :
Center Enamel Inc. is specialized in glass lined steel tank, which is called Glass-fused-to-steel tank ( GFS ).
What’s glass-fused-to-steel storage tank?
Glass Fused to Steel Bolted tanks are a very popular choice for water storage tanks, which Glass-Fused-to-Steel ( Glass-Lined-Steel ) is a unique tank finish. The two materials are fused together to achieve the best properties of both – the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments.
Application :
Glass-lined storage tanks are preferred for storage of hot or cold potable water and other industry or municipal application.
Fundamental Charteristics of Glass Lined Storage Tank :
|
Category |
Specification |
|
Coating Color |
dark green, white, blue, color can be customized |
|
Coating Thickness |
0.25～0.40mm ,double coating |
|
Acid and alkalinity proof |
Standard sheet PH:3～11 Special sheet PH: 1～14 |
|
Adhesion |
3,450 N/cm |
|
Elastic |
Same as steel sheet,around 500 Kn /mm |
|
Hardness |
6.0 ( Mohs ) |
|
Service life |
≥30Years |
|
Holiday test |
>1500v |
|
Permeability |
Gas / liquid impermeable |
|
Easy to clean |
Smooth, glossy, inert, non adhesive |
|
Corrosion resistance |
Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
Advantage:
- Short construction period
- Superior corrosion resistance, service life is more than 30 years
- Low project cost
- Tank volume can be easily expanded
- Beautiful appearance, color can be customized
- Not subject to weather conditions
- No need big installation equipment
- Easily expand , dismantle, move
Application Fields of Glass Lined Water Storage Tank:
Power and Energy
Biogas biomass, aviation oil, process water, boiler feed water, fuel oil
Water Supply and Treatment
Potable water, bitter-brackish water, raw water/fresh water, irrigation water, biological filter
Wastewater treatment
Buffer pool, aerobic reactor, leachate storage, effluent treatment, sedimentation container
Industrial Dry Bulk Storage
Mineral, wood product, chemicals, petrochemicals, mining industry, foods
