Industrial Glass Lined Water Storage Tanks 100 000 / 100k Gallon Durable Long Service Life
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012805 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012805 |
| Coating Color: | Dark Blue, Dark Green , White, And Customized | Easy Yo Clean: | Smooth, Glossy, Inert, Anti-adhesion |
| Coating Thickness: | 4.0.25mm - 0.4mm, Two Coating Internal And External | Permeability: | Gas And Liquid Impermeable |
| Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height | Elastic: | Same As Steel Sheet , Around 500KN/mm |
| PH: | 1 - 14 | Serive Life: | More Than 30 Years |
| High Light: | glass coated steel tanks,porcelain enamel glass lined tank |
||
Product Description

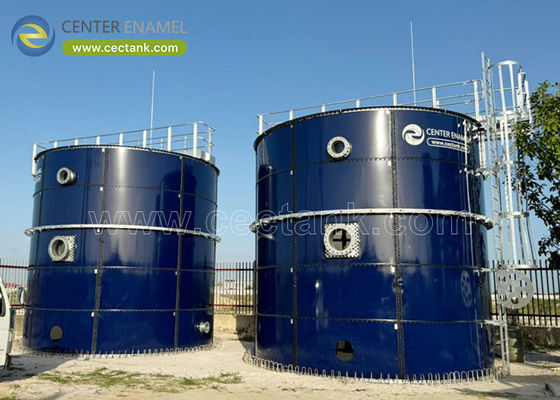

Industrial GLS Water Storage Steel Bolted Tank with Short Construction Period
Introduction of GLS Tank :
Glass-Lined-Steel, also known as Glass-Fused-to-Steel, is the ultimate tank and silo solution utilizing a proven product with significant benefits to customers, consultants and contractors over other types of tank and silo construction.
Glass-Lined-Steel gives significant benefits over other tank and silo systems. This solution utilizes the Glass-Lined-Steel finish on both interior and exterior surfaces to give long term protection and following benefits:
|
Feature |
Benefit |
|
Long life span |
Reduced operational costs |
|
Modular bolted tank construction |
Rapid and cost effective site installation – Reducing project timescales, costs and requirement for on site equipment |
|
Flexibility to re-model |
Tanks can be extended, dismantled and re-sited giving long term asset value |
|
Optimum corrosion resistance |
Safe and secure storage, with minimal maintenance costs |
|
Complete range of diameter and height options with storage capacity solutions exceeding 13,200,000 US Gallons |
Most cost effective solution to meet customers needs |
Fundamental Charteristics:
Coating Color: dark green, white, blue, color can be customized
Coating Thickness: 0.25~0.40mm, double coating
Acid and alkalinity: Standard sheet PH: 3~11
Proof: Special sheet PH: 1~14
Adhesion: 3,450 N / cm
Elastic: Same as steel sheet, around 500 Kn / mm
Hardness: 6.0( Mohs )
Service life: >30Years
Holiday test: >1500v
Easy to clean: Smooth, glossy, inert, non adhesive
Corrosion resistance: Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds
Application:
|
Power & Energy |
Wastewater Treatment |
Water Supply and Treatment |
Industrial Dry Bulk Storage |
|
Biogas Biomass |
Buffer Pool |
Potable Water |
Mineral |
|
Aviation Oil |
Aerobic Reactor |
Bitter-brackish Water |
Wood Product |
|
Process Water |
Biological Filter |
Raw Water/Fresh Water |
Chemicals |
|
Boiler Feed Water |
Effluent Treatment |
Water Purifying Tank |
Mining Industry |
|
Fuel Oil |
Regulating Tank |
Disinfecting Water |
Grain/seeds |
|
Kerosene |
Anaerobic Reactor |
Fire-fighting Water |
Foods |
|
Coal Storage |
Leachate Storage |
Saline Water/Brine Water |
Plasthetics |
|
Fly Ash Silo |
Irrigation Water |
Sedimentation Container |
Petrochemicals |
