Double Wall Storage Tanks , Glass Lined Steel Fiberglass Storage Tanks

China Double Wall Storage Tanks , Glass Lined Steel Fiberglass Storage Tanks supplier
Double Wall Storage Tanks , Glass Lined Steel Fiberglass Storage Tanks supplier Double Wall Storage Tanks , Glass Lined Steel Fiberglass Storage Tanks supplier

Large Image :  Double Wall Storage Tanks , Glass Lined Steel Fiberglass Storage Tanks

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20160127018

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Corrosion Integrity: Excellent Chemical Resistance: Excellent
Relocation Capability: Yes Size Change: Yes
Dismantle: Yes Weather Extremes: Excellent

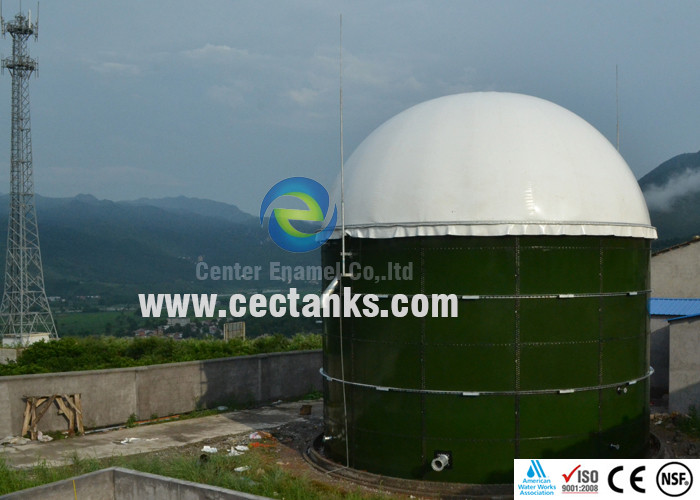

Double Wall Side Glass Lined Liquid Storage Tank  With Fiberglass Roof





Technical advantages

Center enamel Inc. possesses advanced enameling technology and more than 20 years experience . Steels enameling layer , enable to show good chemical and physical performance because it contains titanium . Furthermore , the superfine glass foam-like structure of the e materials’ excellent flexibility and durability.



Quality Control:

     1. Raw materials testing in the factory : ingredient analysis, impurities test ;

2. Recipe finalized small samples test : enamel fluidity test , chromatic     difference analysis, enamel burning experiment , acid and alkali resistance testing , glossy , adhesion etc ,

3. Middle stage products test : amplification experiment simulated  environment

4. Destructive testing , detection , impact test ,  sparks test , sliced electric microscope analysis .



Specification of glass fused to steel tank

Category

Specification

Coating Color

dark green, white, blue, color can be customized

Coating Thickness

0.25~0.40mm ,double coating

Acid and alkalinity proof

Standard sheet  PH:3~11

Special   sheet  PH: 1~14

Adhesion

3,450 N/cm

Elastic

Same as steel sheet,around 500 Kn /mm

Hardness

6.0 ( Mohs )

Service life

≥30Years

Holiday test

>1500v

Permeability

Gas / liquid impermeable

Easy to clean

Smooth, glossy, inert, non adhesive

Corrosion resistance

Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds























Exporting tanks to over 20 different countries , until now we export more than 2000 tanks all over the world , and win a good reputation among the peer . Some projects as your reference below :



1,  2008 Beijing Olympics Games wastewater treatment project

2,  2009 Niger Azelik  uranium deposits ( China National Nuclear Corporation )

3,  2009 Niger Azelik  uranium deposits (China National Nuclear Corporation)

4,  2009-2013 Palm oil wastewater treatment project in Indonesia

5,  2011 Anyang city Biogas project

6,  Chengdu Biology waste water project

7,  Brewery wastewater treatment

8,  Shandong Garbage waste water treatment project

9,  Pharmacy waste water treatment project

10,  2013  Sichuan  Chengdu  Pharmaceutical wastewater treatment

11,  2014 Urban sludge treatment project- Kazakhstan



We have rich experience in projects , no matter wastewater treatment projects , biogas projects , potable water storage or other projects , we are your reliable supplier in glass fused to steel tank . Except for supplying you glass fused to steel tank , we also can supply you different kinds of roofs . Technical support , free drawing as per contract , as required we also can send you supervisor or installation team to help installation .
