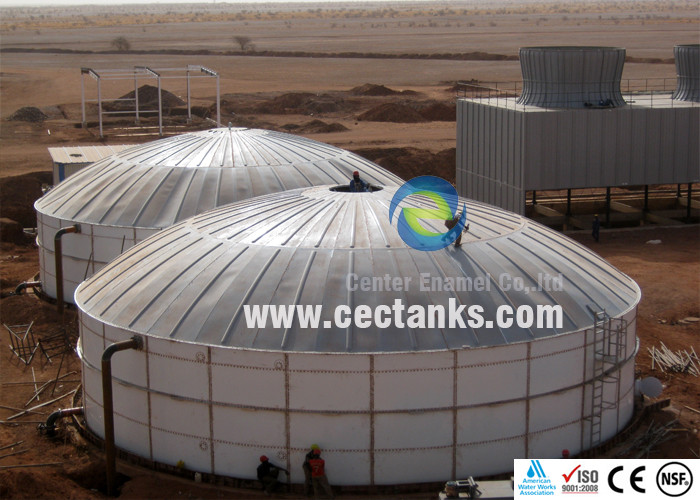

Vitrum Steel Bolted Tanks / Liquid Storage Tanks NSF61 Certification
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160127016 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160127016 |
| Hardness: | 6.0Mohs | Service Life: | More Than 30 Years |
| Holiday Test: | >1500v | Permeability: | Gas And Liquid Impermeable |
| Coating Color: | Dark Green / Can Be Customized | Coating Thickness: | 0.25mm~0.40mm & Double Coating |
| High Light: | chemical storage tank,crude oil storage tank |
||
Product Description
Glass Lined Coated Potable Water Storage Tank Comply With NSF61 Certification
Glass coating protect water tanks
The application of glass fused to steel tank is wide ,which has advantages in storing potable water and other liquid applications . In addition it is easy to do the assembly , have excellent acid and alkali proof , great service life , minimal maintenance cost comparing with other liquid storage tanks .
The physical properties of glass coating are especially used to municipal and industry applications , because the glass coatings form a hard , glossy , inorganic barriers for both interior and exterior tank wall resist of weather condition . The enamel frit burn in temperature from 800 -950 degree , creating greatest and strongest bond between enamel coating and steel .
Glass fused to steel tank has great corrosion , the steel surface can resist the acid and alkali PH from 3-11 . Glass fused to steel tank’s design comply with the standard AWWA D103 – 09 , OSHA , ect international standards , and the production line reach to the standard ISO 9001 – 2000 . For potable water storage , our steel sheet also have the NSF61 certification , which prove that the enamel coating is safe to contact the water directly .
Comparation of different kinds of tanks
|
Charaeristic |
Cement |
304 S.S. |
FRP tank |
Enamel tank |
|
Product color |
grey |
Metal color |
Any color |
Green, white, blue, any color |
|
Coating thickness |
No |
no |
>300mm |
0.2-0.4mm |
|
Steel thickness |
>250mm |
>3mm |
>300mm |
3-20mm |
|
Aid & alkali resistance |
normal |
normal |
Special fiber |
excellent |
|
Hardness |
C15-C60, |
HV310-370, Mohs 5.5 |
Barcol hardness 40 |
Mohs 6-7 |
|
Service life |
50 years |
>30 years |
<10 years |
>30 years |
|
Pressure standing ability |
strong |
normal |
normal |
strong |
|
Installation period |
> 35 days |
>20 days |
>30 days |
7-10 days |
|
Installation |
Complex, request big professional equipment |
Professional people, work high above the ground, dangerous installation |
work high above the ground, dangerous installation, have request on weather condition |
Safe installation, easy, fast, do not have requests on weather condition |
|
Removal |
impossible |
Possible, but high cost |
impossible |
Possible, low cost |
|
Out appearance |
normal |
Ok, but only one color |
ok |
Good looking |
Glass fused steel tank specifications
|
Coating color : dark blue , dark green , white , and customized |
|
A standard steel plate size : effective size 2400mm x 1200 m |
|
Steel plates thickness : 3mm - 12mm , depends on the diameter & height |
|
Coating thickness : 0.25mm - 0.4mm , two coating internal and external |
|
Acid and alkalinity proof : standard coating suits for PH3 - PH11 , special coating suits for PH1 - PH14 |
|
Service life : more than 30 years |
|
Holiday test : 1500V |
|
Permeability : gas liquid impermeability |
