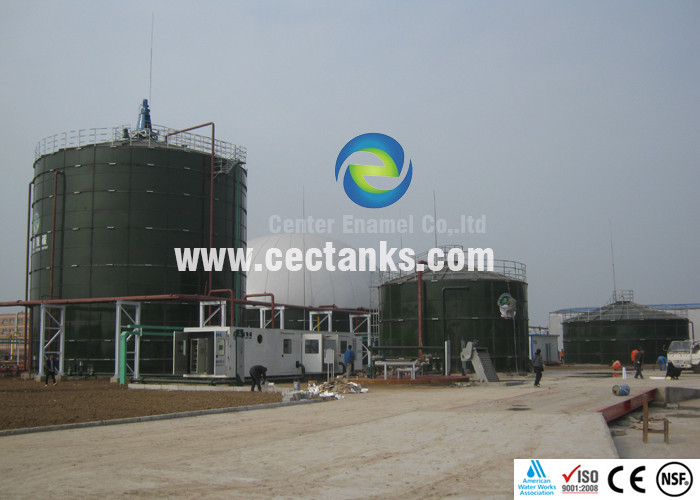

Glass Fused To Steel Liquid Storage Tank Comply With Nsf61 Certification
Brife introduction of glass fused to steel tank
Glass fused to steel tank is a kind of factory fabrication tank , which made of glass coated on Ti-rich special steel plates . The steel plates are coated with enamel powder ( mixing with 10-20 different materials ) and burned in oven ( Temperature from 800 celsius to 950 celsius ) , which makes the steel sheet and glass coated greatly blend together . High recommended , all of the holes on the tank wall will be precutted on the workshop , instead of on job site . Accoding to the size of hole , there will be some flanges nozzles along with .
About the installation of glass fused to steel tank , there is no need big equipment to do it . Jacks are required during the installation , we will install the tank from the top ring , one by one until all of them are installed . Glass fused to steel tank is widely used in wastewater treatment , sludge treatmentanaerobic digester , because of its’s excellent corrosion resisitance .
Our technology advantages
1. Being engaged in enamel industry for over 26 years , we process more than 200 patents of enamel frit formulas . Exporting tanks to UAS ,Australia , Singapore , Malaysia ect. Countries , until now we install more than 2000 tanks all over the world , have rich experience in project .
2. Complied with quality system certificate ISO9001-2008 , glass – fused – to - steel tank manufacturing standard Q/01ZT012009 and NSF ( National Sanitation Foundation ) .
3. Our design passed the international standards , design GFS tank according to AWWA D103-09 and OSHA ,EN and Australia standards .
4. Quality control : raw material test , recipe finalizing small sample test , middle stage product test , destructive testing all of this test made sure our goods in good quality
GFS tank specifications
1. Type : Glass fusedto steel liquid tank
2. Color : Cobalt blue,green , sky blue,or custom color
3. Roof : Glass fused to steel roof , aluminum dome roof , aluminum deck roof , fiberglass roof .
4. Size : Tank size up to 18000m3 , will be larger in the near future .
5. Service Life : More than 30 years , better than traditional tank like concrete tank
6. PH range : Standard sheet PH:3-11 , Special sheet PH : 1-14
7. Holiday test : More than 1500V
8. Corrosion resistance : Excellent ,suitable for wastewater , salt water , sea water , high sulfur crude oil , salt fog , organic and inorganic compounds
9. Hardness : 6.0 mohs
10. Elastic : Same as steel sheet , around 500 KN/mm
11. Adhesion : 3,450 N/cm
Contact Person: Miss.Melody wong
Permeability: as and liquid impermeable
Acid and alkalinity proof: standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Usage: waste water treatment , sewage treatment, effluent treatment, ect.
Corrosion resistance: excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
