Vitreous enamel coating Liquid Storage Tanks Corrosion Resistance
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160128001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160128001 |
| Elastic: | Same As Steel Sheet ,around 500KN /mm | Hardness: | 6.0Mohs |
| Service Life: | More Than 30 Years | Holiday Test: | >1500v |
| Permeability: | Gas And Liquid Impermeable | Coating Color: | Dark Green /can Be Customized |
| High Light: | liquid fertilizer storage tanks,crude oil storage tank |
||
Product Description

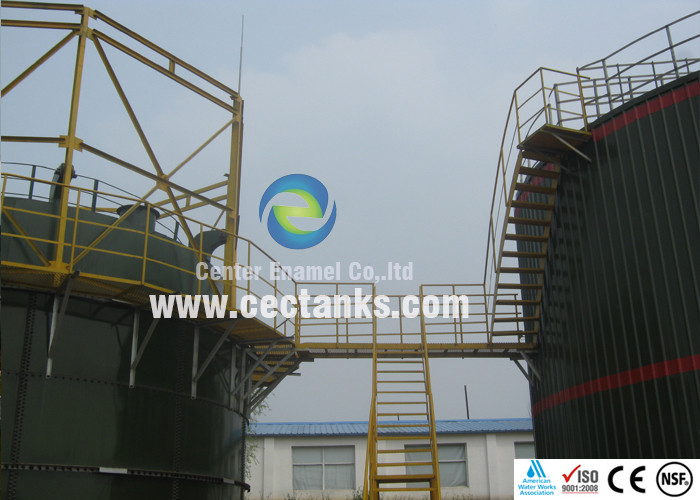

Liquid Storage Tank With High Corrosion Resistance And Long Service Life
Glass fused to steel tank application
|
Power and Energy |
Water supply and Treatment |
Wastewater Treatment |
Industrial dry bulk storage |
|
Bio gas biomass |
Potable water |
Buffer Pool |
Mineral |
|
Aviation oil |
Bitter-brackish water |
Aerobic Reactor |
Wood product |
|
Process water |
Raw water/Fresh water |
Biological Filter |
Stone/Clay/Glass |
|
Boiler Feed water |
Aeration |
Effluent Treatment |
Chemicals |
|
Fuel Oil |
Biological Filter |
Regulating Tank |
Petrochemicals |
|
Kerosene |
Water Purifying |
Anaerobic reactor |
Foods |
|
DI water |
Fire-fighting water |
Leachate Storage |
Plasthetics |
|
Coal Storage |
Saline Water/Brine Water |
Irrigation water |
Grain / Seeds |
|
Diesel |
Sedimention Container |
Water Purifying |
|
|
Drilling mud |
Ro Water |
Sedimentation Container |
|
|
Reverse osmosis water |
Sea water desalinization |
Sludge Tank |
|
What is glass fused to steel tank ?
Glass fused to steel tank conbined with “ glass ” and “ steel ” , so it has the excellent corrosion resistant of glass as well as the strength and flecibility of steel . Glass fused to steel sheet coated the enamel frit ( it is made mix with about 20 different kinds of materials ) on the Ti – rich specialize steel sheet ( ATR 310 steel sheet , which is the special steel of enamel steel sheet ) . We can coat one enamel one fire ,two enamel two fire , three enamel three fied on double side of steel sheet . Coating on double steel sheet make the acid and alkali proof is excellent , the service life of it is more than 30 years ,which is better than traditional tanks .
The high temperature fusion of glass to steel fired at 800 - 950 degree results in an inert , durable finish. Applied to both interior and exterior , the GFS technology is able to withstand the rigorous of the construction site and provide many years of trouble free service in harsh environments . For the erection there is no need large machines to do it , it is the bolted tank which erected by high corrosion bolts ( HDG bolts or SS bolted ) and flexible selant . All of the holes are precut in workshop instead of on site , and they are in free charges .
Project reference
-- 2008 Beijing Olympics Games wastewater project
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009-2013 Palm oil wastewater treatment project in Indonesia
-- 2011 Anyang city Biogas project
-- Chengde Biology waste water project
-- Brewery wastewater treatment
-- Shandong Garbage waste water treatment project
-- Pharmacy waste water treatment project
-- 2013 Sichuan Chengdu Pharmaceutical wastewate treatment
-- 2014 Urban sludge treatment project- Kazakhstan
