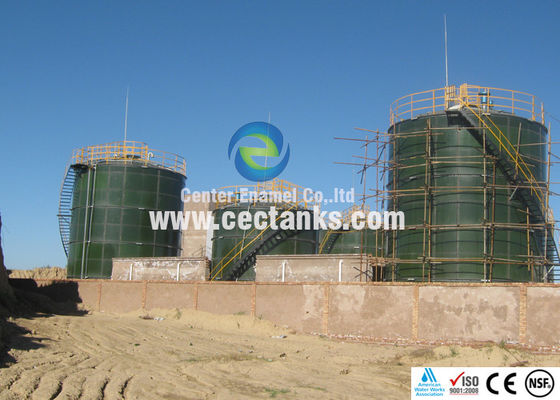

Above ground water storage tanks , municipal wastewater treatment
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W2016012760 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W2016012760 |
| Tank Cost: | Low | Annual Anti-corrosive Cost: | No |
| Relocation: | Possible ,low Cost | Pressure Standing Ability: | Strong |
| Acid & Alkali Resistance: | Strong | Outside Appearance: | Good Looking |
| Installation Time: | 7-20 Days ,depending On Size And Quantity Of The Tanks | High Light: | condensate storage tank,aluminium dome roof storage tanks |
Product Description
Glass Coated Above Ground Leachate Storage Tanks For Municipal Application
Leachate storage tanks are commonly above ground or under ground tanks installed at landfills / waste collection sites to collect the leachate water runoff for treatment. These tanks prevent contaminated water from seeping into the ground water prior to treatment.
There are only few tanks that have abilities to store landfill leachate, which with the variability in composition. When a project comes with leachate storage tanks, the landfill operator’s first option is Center Enamel’s glass fused to steel leachate storage tanks.
Glass fused to steel leachate storage tanks are mainly consisted of glass fused to steel plates, which with glass fused finish under 850 degrees Celsius firing fusion. By combine the glass anti - corrosion feature with steel hardness advantage, the glass fused to steel plates can resist PH range from 1 to 14. This feature allows glass fused to steel plates used for leachate storage tanks.
Advantages of Glass Coated Leachate Storage Tanks
1. Short Construction Period: compare to over 90 days construction time of concrete tank, it takes even less than 15 days for installation of GFS Leachate Storage Tanks.
2. Superior Corrosion Resistance: Center Enamel Leachate Storage Tanks can resist PH range of 1 - 14.
3. Long Service Life: the Center Enamel GFS Tank are designed to work in a long service life as more than 30 years.
4. Tank Volume can be easily expand: GFS Leachate Storage Tanks are not only easy to construct, but also convenient to expand, remove and rebuild.
5. Beautiful Appearance: the color of glass fused to steel tank could be customized as per client’s request based on Pantone Matching System.
Parts and Accessories of Glass Coated Leachate Storage Tanks
Center Enamel’s glass fused to steel tanks are manufactured and designed as per AWWA D103 - 09 standard, OHSA, and can meet European and Australia design standard.
1. Glass fused to steel sheets
2. Special Sealant
3. Self-locking bolts
4. Manholes
5. Ladder and Platform
6. Roofs and Covers
7. Walkways
Comparison With Other Leachate Storage Tanks
|
Item |
Concrete Tank |
Carbon steel tank |
Glass Coated Leachate Storage Tanks |
LIPP tank |
|
Beautiful degree |
Low |
Low |
High |
High |
|
Temperature adaption |
A stress |
Adapt to low temperature |
Adapt to low temperature |
Adapt to low temperature |
|
Shape |
Any shape |
Round shape |
Round shape |
Round shape |
|
Ground Or underground |
Both |
Ground |
Both |
Ground |
|
Corrosion resistance |
Normal |
No resistance to corrosion |
Good |
Not |
|
Abrasion resistance |
Good |
Bad |
Good |
Bad |
|
Easy to clean |
Bad |
Bad |
Good |
Normal |
|
Easy to repair |
Normal |
Good |
Good |
Bad |
|
Weight (T) |
heavy |
Little heavy |
light |
Little light |
|
Tank cost |
middle |
high |
low |
low |
|
Tank temperature protect |
no |
need |
need |
need |
|
Anti-corrosive Treatment |
no |
need |
no |
need |
|
Annual anti-corrosive cost |
no |
High cost |
no |
High cost |
|
Corrosion resistance |
normal |
no |
superior |
normal |
|
Abrasion resistance |
good |
bad |
good |
bad |
|
Service life |
30 |
10 |
30 |
25 |
