Steel water storage tank , welded steel tanks for water storage
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160127005 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160127005 |
| Impact Resistance: | Excellent | Weather Extremes: | Excellent |
| Erection Time: | Short | Freight Cost: | Low |
| Relocation Capability: | Yes | Dismantle: | Yes |
| Corrosion Integrity: | Excellent | Chemical Resistance: | Excellent |
| High Light: | bolted steel water storage tanks,above ground water storage tanks |
||
Product Description

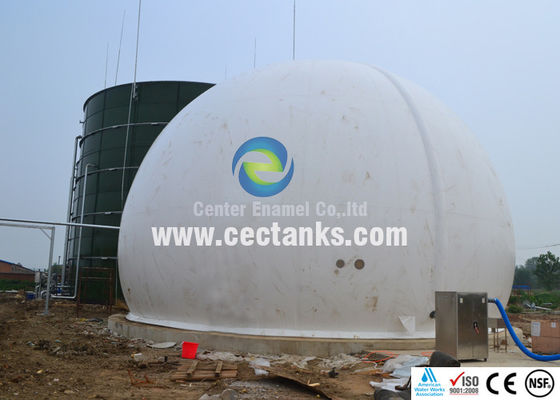

Long Lifetime Glass Lined Bolted Steel Tanks Used in Anaerobic Digestion for Biogas Plant
Brief introduction
Glass-Fused-To-Steel is a unique tank finish. Tow materials are fused together to achieve the best of both materials – the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Steel panels baked to 840° Celsius creating the ultimate fusion of materials for a highly durable surface bond. As the panels are bolted together, it will not take that long construction times .Your investment will get quick return for minimal maintenance cost Bolt systems commonly used by others are prone to damaging the glass fused coating at the edges of a bolt hole, creating vulnerabilities in the fusion coating, potentially leading to premature corrosion or leaking.. Glass lined panel, self-locking bolts and sealant form the structure of glass fused to steel tank ,a highly durable tank
Specification
panel size 1200*2400mm
Coating thickness double layer 0.2-0.45mm
Capacity 20CBM – 8000CBM
Mohs Hardness 6.0
Corrosion resistance standard coating PH:3-11
special coating PH:1-14
Adhesion 3,450N/cm
Service Life above 30 years
Advantages of GFS tanks for Anaerobic Digestion
|
More corrosion resistant compared with other types of tanks |
|
Short-term production and installation |
|
High Performance and Hard wearing: service life of glass fused to steel tank is more than 30 years |
|
Flexibility to re-model, extend, dismantle and re-Site: |
|
Colors can be customized ,harmonious with the surrounding landscape |
|
Do not need big equipment for erection |
