Enamel Coated Steel Anaerobic Digester Tank Utilized In Large Biogas Project

China Enamel Coated Steel Anaerobic Digester Tank Utilized In Large Biogas Project supplier
Enamel Coated Steel Anaerobic Digester Tank Utilized In Large Biogas Project supplier Enamel Coated Steel Anaerobic Digester Tank Utilized In Large Biogas Project supplier Enamel Coated Steel Anaerobic Digester Tank Utilized In Large Biogas Project supplier

Large Image :  Enamel Coated Steel Anaerobic Digester Tank Utilized In Large Biogas Project

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012648

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Capacity Range: 20 M3 To 18,000 M3 Service Life: More Than 30 Years
Coating Thickness: 0.35mm Coating Color: Customized
Roof Options: Glass Fused Steel Roof , Membrane Roof, Aluminum Deck Roof, GRP Roof Color Of Coating: Dark Green, Dark Blue, Light Blue And Customized
Tank Material: Glass Coated Steel Sheets

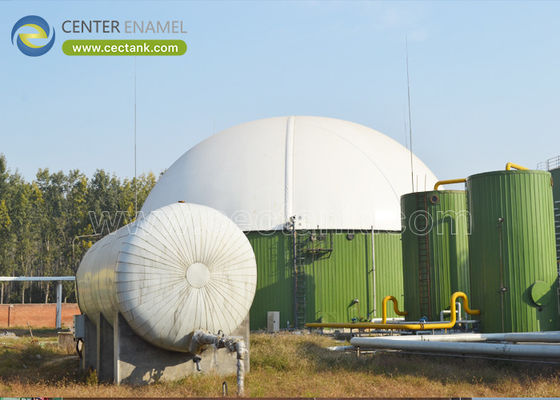

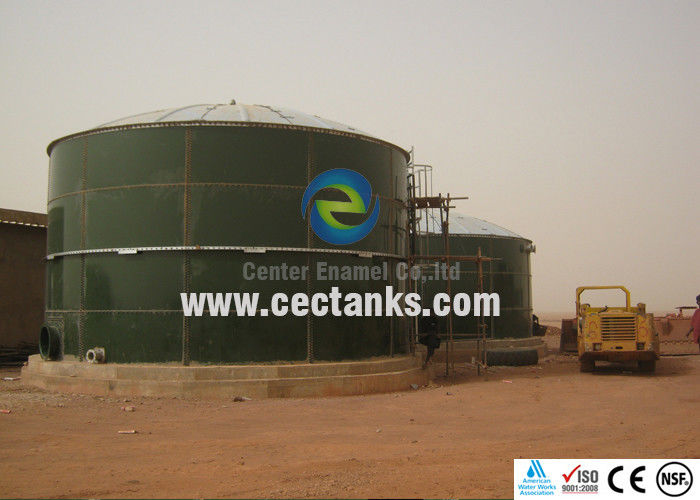

Two Enamel Two Fired Glass Fused Steel Ad Plant , Utilized In Large Biogas Project





What is anaerobic digester tank ?



Anaerobic digester is a biological process to degrade and convert the organic waste to biogas , which is widely used as a source in renewable energy . Almost all of the organic waste can use anaerobic digester , like the domestic waste , industry waste , animal waste ect . These wastes can be highly untilize , conver the waste to the green renewable energy .



There are some conditions to achieve the reaction . The reaction environment need to be in the condition of absence of oxygen , and there is also some conditions of the temperature . For the mesophiles are most efficient at moderate temperature ranges between 25°C - 40°C , while thermophiles run most efficiently at higher ranges between 45°C - 80°C . In some sites if the temperature is low , it need to do some insulation in order to keep the temperature in a certain level . If the heat is lose the organic material can’t in full reaction , that means waste money .





Why will you select our glass fused to steel tank as AD plant ?



1. Super corrosion resistance : ART 310 the enamel specialize steel sheet ,which is our patent in China , after enamel the ART 310 steel sheet is greatly solve the fish scale problem . The PH of our steel sheet is from 3-11 , for the special steel sheet it can be from 1-14 , excellent acid and alkali proof function.



2. Suitable for various kind of fields: Not only  can be used as anaerobic digester , wastewater treatment plant , it also can be sued in power and energy, agriculture storage tanks .



3. Easy installed, expanded, dismantle, removed: The installation time of it is not only short , no need to use the big equipment as like as concrete tank ; but also the size can be expanded , easily dismantle and removed .



4.There is no weather , wind and site condition , the size of is optional up to 18,000m3 .



5. Our tank comply with international standard , which already pass the ISO9001-2000 system certification , and the design comply with AWWA D103 -09 , OSHA ,EN and Australia standards . For the drinking water our enamel frit also reach the NSF61 standard .



5. We are the experience manufacturer , we export tanks to USA , Australia , Singapore , Malaysia ect countries . Until now we install more than 2000 tanks all over the world , and get a good feedback from our customers .





Specification of glass fused to steel tank



Coating Color

Dark green , white , blue ,color can be customized

Coating Thickness

0.25mm - 0.40mm , double coating

Acid and Alkali proof

Standard sheet PH: 3-11
Special sheet PH: 1-14

Adhesion

3450N/CM

Elastic

Same as steel sheet , around 500 KN/MM

Hardness

6.0(Mohs)

Service Life

More than 30 year

Holiday Test

More tank 1500V

Permeability

Gas / Liquid impermeable

Easy to clean

Smooth , glossy , inert , non adhesive

Corrosion resistance

Excellent , suitable for wastewater , salt water , sea water , high - sulfur crude oil , salt fox , organic and inorganic compounds
