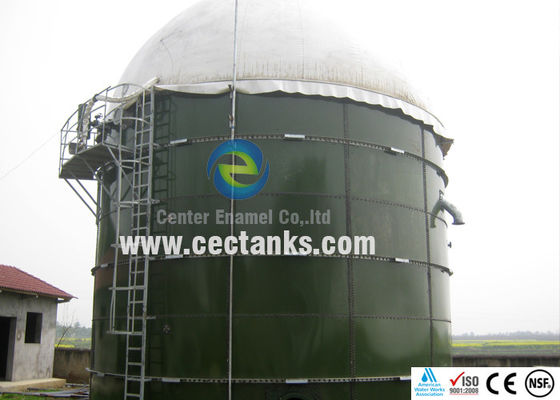

100000 / 100K Gallon Biogas Storage Tank , Low Temperature Anaerobic Digestion
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012626 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012626 |
| Color: | Customized | Tank Body Material: | Glass Fused Steel |
| Roof Meterial: | Membrane | Volume Range: | From 20 M3 To 18,000 M3 |
| Lifespan: | More Than 30 Years | Coating Thickness: | 0.35 Mm |
| Coating Color: | Customized | Roof Type: | Glass Steel Roof, Membrane Roof, Aluminum Roof, GRP Roof |
| Design According To: | AWWA D 103 , OSHA | High Light: | biogas septic tank,biogas anaerobic digestion |
Product Description
Anti - Acid And Anti - Alkali Biogas Storage Tanks Adapt To Low Tempreature
Biogas is one of the most attractive sources of renewable energy :
- It mitigates the growing problem of waste disposal.
- It is cost competitive without subsidies , and produces energy which can be used locally or fed into the electricity grid.
Glass fused to steel tank improveS the reliability and efficiency of biogas plants. Their performance has already been demonstrated , making them the material of choice for biogas processing. In Europe , USA and many other countries , enamel bolted tanks already have more than 100 years’ history , they are commonly used for various kinds of waste water treatment , petroleum , grains , dry bulk storage.
Glass fused to steel has many advantages in this application including :
1. Lower construction costs : a typical tank can be fully installed within 7 - 10 days.
2. Minimal logistics : making it possible to construct a biogas plant in almost any area.
3. Minimal marintainance : as no need for repairs thanks to the corrosion resistance of stainless steel.
4. Gas and water impermeable : joints are easy to keep watertight ; holes are easy to drill ;
and gas leakage is prevented.
Summary specification and application of our enamel coating steel tanks
|
Category |
Specification |
|
Coating Color |
dark green , white , blue , color can be customized upon your request |
|
Coating Thickness |
0.25 - 0.40mm , double coating |
|
Acid and alkalinity proof |
Standard sheet PH : 3 ～ 11 |
|
Special sheet PH : 1 ～ 14 |
|
|
Adhesion |
3,450 N / cm |
|
Elastic |
Same as steel sheet , around 500 Kn / mm |
|
Hardness |
6.0 ( Mohs ) |
|
Service life |
≥ 30Years |
|
Holiday test |
> 1500v |
|
Permeability |
Gas / liquid impermeable |
|
Easy to clean |
Smooth , glossy , inert , non adhesive |
|
Corrosion resistance |
Excellent. suitable for waste water treatment , sewage treatment , effluent treatment , salt water ,sea water , high-sulfur crude oil , salt fox , organic and inorganic compounds |
