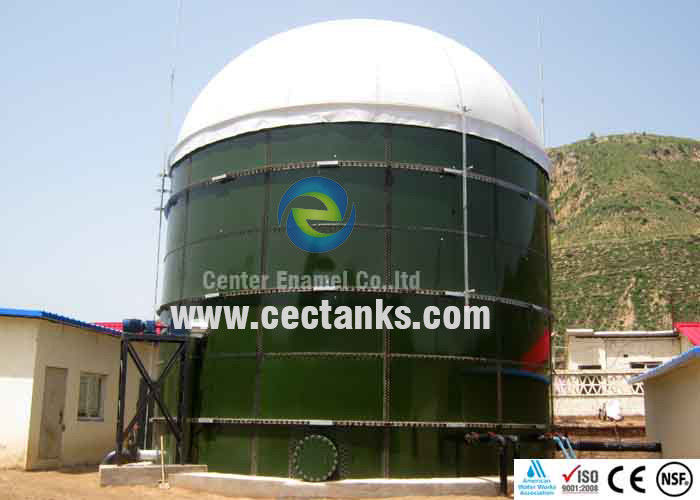

Biogas Storage Tank , Anaerobic Digestion in Wastewater Treatment High Capacity

China Biogas Storage Tank , Anaerobic Digestion in Wastewater Treatment High Capacity supplier
Biogas Storage Tank , Anaerobic Digestion in Wastewater Treatment High Capacity supplier Biogas Storage Tank , Anaerobic Digestion in Wastewater Treatment High Capacity supplier

Large Image :  Biogas Storage Tank , Anaerobic Digestion in Wastewater Treatment High Capacity

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012618

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Capacity: Customized, 20 M3 To 18,000 M3 Lifespan: Over 30 Years
Coating Thickness: 0.25mm~0.40mm ,double Coating Coating Color: Customized
Design Standard: AWWA D 103 , OSHA Color: Customized
Material: Glass Fused Steel

Euro - Standard Biogas Storage Tanks Expandable And Removable





Product introduction



The biogas storage tanks is a kind of anaerobic reactor for biogas digester. The tanks need to be

with high volumetric loading rate,Strong resistance to impact and stable water flow cycle.


In the market , there are a lot of tanks made from different material , they are : Concrete tanks ,

Stainless steel tank , Lipp tanks , Enamel coating steel tanks . Among them, Enamel coating steel

tanks are the perferct choice for the biogas digester as below reason :



1. The enamel steel adopt special steel plate which is special for enamel tanks making the tanks twice harder then the normal steel tank.



2. Strong corrosion resistance and abrasion resistance : as the tanks used as anaerobic digester for wastewater , sewage , effluent , which contains gigh concentration of substance which will corrode the tanks , so the tanks need to be resistant to corrosion. And the enamel steel tanks are the only tanks

that fuse two material ( Glass and Steel ) together and reach the best of each other : strength and flexibility of the steel combined with the corrosion resistance of the glass. It can be used for any kind

of liquid.



3. Easy installation , remodeling , relocating. The enamel steel tanks are bolted with modular enamel

steel plate. It can be installed , dismantle , rebuilt and shipped very easily. And as easy installation, the construction period will greatly reduced when compare to other kinds of tanks. Only 7 ~ 15 days is

needed for enamel stank installation.



4. Long service life : The enamel tanks can offer sevice for over 35 years.



5. The enamel tanks can be used for any kind of environment.



6. Gas and Liquid Impermeable. The assemble system of the tanks with special sealant and

self - locking bolts makes sure no leaking of gas and liquid, making sure the tanks could be

used for any kind of water and liquid and gas.



7. Anti-static property : It is very safe to used for water storage , waste water / sewage treatment.



8. Large capacity : Flexible capacity from 20m3 to 18600m3.





Why choose our enmel steel tank for the biogas degester?



Our biogas storage tanks are made from enamle coating steel sthee which produced by the most advanced production line. The biogas degester enamel bolted tanks have already passed ISO9001 - 2000 quality system certification , and can reach AWWA D103  - 09 standard , OSHA and European standards. We are the only enterprise that can produce AA grade ( acid - proof and alkali - proof ) enameled sheet now.  According to customers' different operating requirements , we can customize various products.



Biogas Storage Tank , Anaerobic Digestion in Wastewater Treatment High Capacity



Quick details



Category

Specification

Coating Color

dark green, white, blue, color can be customized upon your request

Coating Thickness

0.25 - 0.40mm, double coating

Acid and alkalinity proof

Standard sheet PH : 3 ~ 11

Special sheet PH : 1 ~ 14

Adhesion

3450 N / cm

Elastic

Same as steel sheet , around 500 Kn / mm

Hardness

6.0 ( Mohs )

Service life

≥  30Years

Holiday test

> 1500v

Permeability

Gas / liquid impermeable

Easy to clean

Smooth , glossy , inert , non adhesive

Corrosion resistance

Excellent.

suitable for waste water treatment , sewage treatment , effluent treatment ,

salt water ,sea water , high-sulfur crude oil , salt fox , organic and inorganic

 compounds

Advantages

1. A high resistance to aggressive materials and corrosive liquids

2. Highly resistant to atmospheric corrosion and UV light

3. High durability and extended life usage

4. Easy maintenance and cleaning

5. Operational duty time considerably reduced

6. Short manufacturing times

7. Expandable and the ability to relocate

8. High efficiency and equivalent value

9. Minimal maintenance expense
