Customized sludge storage tank / 30000 gallon water storage tank

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012611
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012611
Defect Free: Minimum Maintenance Needed Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals
Standard: AWWA D 103 , OSHA Warranty Period: 2 Years Free Of Charge
Capacity: Customized, 20 M3 To 18,000 M3 Lifespan: Over 30 Years
Coating Thickness: 0.25mm~0.40mm ,double Coating Coating Color: Customized
High Light:

sludge holding tanks

,

sludge digester tank

Product Description

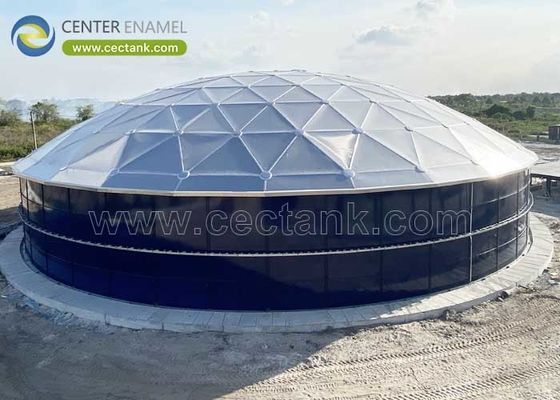

Sludge holding tank in customized color and capacity used in effluent treatment process





When it comes to sludge holding tank in customized color and capacity used in effluent treatment process, it is definitely glass - fused - to - steel tank . It is named in different way, depending on the region where they are installed . “ glass lined steel tank “ , “ GLS tank “, “ glass coated steel tank ”, “ Glass - fused - to - steel tank “ , “ GFS tank “ ,  “ enamel coated steel tank “ , “ assembled enameled steel tank “  ect.  All these names all mean the same thing . The steel round (cylindrical) shell of the tank is built from two-layer enameled sheets coated on both sides. The sheets are attached with special high-grade bolts and sealed by constantly flexible silicone (sealant). The surface of connecting material and the shell itself are properly treated.



Glass Fused Steel Tanks Application



GFS tank has been widely used municipal and industrial effluent, sewage, waste water, water treatment as various aerobic and anaerobic reactors of UASB,EGSB,SBR,BAF,USR,CSTR, and equalization tank, sludge holding tank, etc.


Center Enamel Co. Ltd competitive advantages



1. Enamel frit formulas made by itself .  Center Enamel Co Ltd is the leader manufacturer of glass lined steel tanks in China established in 1989 . At the beginning, it is a factory making research , development and manufacturing of enamel frit . Years later , it starts to make glass lined steel tanks. Center Enamel Co Ltd occupies 200 patents of enamel frit formulas.



 2. Hundreds of installation . We have built glass fused to steel tanks in overseas and domestic market over hundreds .



3. International tank structure design criterion :  as an ISO 9001 :2008 approved manufacturer , we design glass fused steel tanks according to international standard AWWA D 103 for Bolted Steel Water Storage Tanks and OSHA . Specially for potable water storage , our glass fused steel tanks meet with the standard of NSF -61 .



4. Ti-rich special steel plate ART 310 : Ti-rich steel plate can not only greatly Increase  the adhesive power between steel and enamel coating, but also solve fish scaling problem and improve the steel yield strength after firing. The special steel ART310 is our patent technology.



5. The largest and most professional glass fused steel products in China .  We are the only one manufacturer who can produce AA grade steel plates in China .





Project references





-- 2015 water plant - Ecuador

-- 2014 Urban sludge treatment project- Kazakhstan

-- 2013  Sichuan  Chengdu  Pharmaceutical wastewate treatment

-- 2013  Sichuan  Chengdu  Pharmaceutical wastewate treatment

-- 2011 Anyang city Biogas project

-- 2009 Niger Azelik  uranium deposits(China National Nuclear Corporation)

-- 2009-2013 Palm oil wastewater treatment project in Indonesia

--  2008 Beijing Olympics Games wastewater project

-- Chengde Biology waste water project

-- Brewery wastewater treatment

-- Shandong Garbage waste water treatment project

-- Pharmacy waste water treatment project







Glass fused steel tank advantages



1.  superior performance in corrosion resistance and against rust

2.  factory fabrication tank . No painting or spray on erection site

3.  minimal maintenance cost

4.  No need crane or other large equipment during erection.

5.  not subjected to severe weather and environment

6.  can be designed to future expansion, dismantle or re-movement.

7.  free service for technical drawings

8.  turn key service from proposal to tank commissioning
