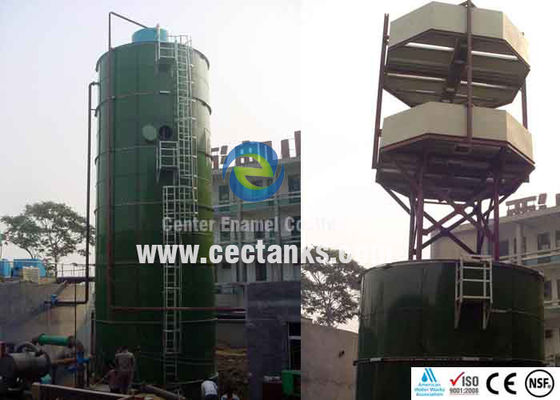

Vitreous enamelled steel industrial water tanks Weather resistance
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012325 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012325 |
| Adhesion: | 3,450 N/cm | Service Life: | Over 30 Years |
| Capacity: | 20 M3 - 18,000 M3 | Color: | Customized |
| Material: | Glass Fused To Steel | Acid And Alkalinity Proof :: | Standard Sheet PH：3～11; Special Sheet PH： 1～14 |
| Coating Color: | Ark Green, White, Blue, Color Can Be Customized Upon Your Request | Holiday Test: | > 1500 V |
| Corrosion Resistance: | Excellent. Suitable For Waste Water Treatment, Sewage Treatment, Effluent Treatment.、salt Water、sea Water、high-sulfur Crude Oil、salt Fox、organic And Inorganic Compounds | High Light: | fixed roof storage tank,municipal water storage tanks |
Product Description
Easily Installed Industrial Water Tanks Without Subject To Weather
Industrial Effluent Tanks introduction
Our industrial effluent tanks are also called glass fused to steel tank (GFS tanks), The glass fused to steel sheet is made of special steel ART310 containing rich titanium that makes the steel sheet twice the strength then ordinary steel plate. Inside and outside the steel plate coated with two layers of enamel, after drying, heat the steel in 900 ℃ high temperature, makes the steel sheet to achieve the best performance of both : the strength and flexibility of the steel combined with the corrosion resistance of the glass.
Description
Coating Color : dark green, white, blue, color can be customized upon your request
Coating Thickness : 0.25mm ～ 0.40mm ,double coating
Acid and alkalinity proof : Standard sheet PH:3～11; Special sheet PH: 1～14
Adhesion : 3,450 N/cm
Elastic : Same as steel sheet,around 500 Kn /mm
Hardness : 6.0 ( Mohs )
Service life : more then 30Years
Holiday test : >1500v
Permeability : Gas / liquid impermeable. It’s very suitable for waste water treatment, biogas digester.
Easy to clean : The Smooth, glossy, inert, non adhesive
Corrosion resistance : Excellent. suitable for waste water treatment, sewage treatment, effluent treatment.,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds
Outstanding advantages of our industrial effluent tanks
|
Characteristic |
Cement |
304 S.S. |
FRP |
Enamel tank |
|
Product color |
grey |
Metal color |
Any color |
Green, white, blue, any color |
|
Coating thickness |
No |
no |
>300mm |
0.2-0.4mm |
|
Steel thickness |
>250mm |
>3mm |
>300mm |
2-12 mm |
|
Aid & alkali resistance |
normal |
normal |
Special fiber |
excellent |
|
hardness |
C15-C60, |
HV310-370, Mohs 5.5 |
Barcol hardness 40 |
Mohs 6-7 |
|
Service life |
50 years |
>30 years |
<10 years |
>30 years |
|
Pressure standing ability |
strong |
normal |
normal |
strong |
|
Installation period |
> 35 days |
>20 days |
>30 days |
7-10 days |
|
installation |
Complex, request big professional equipment |
Professional people, work high above the ground, dangerous installation |
work high above the ground, dangerous installation, have request on weather condition |
Safe installation, easy, fast, do not have requests on weather condition |
|
removal |
impossible |
Possible, but high cost |
impossible |
Possible, low cost |
|
Out appearance |
normal |
Ok, but only one color |
OK |
Good looking |
Application fields of our industrial effluent tanks / Glass fused to tank
|
Power and Energy |
Water supply and Treatment |
Wastewater Treatment |
Industrial dry bulk storage |
|
Bio gas biomass |
Potable water |
Buffer Pool |
Mineral |
|
Aviation oil |
Bitter-brackish water |
Aerobic Reactor |
Wood product |
|
Process water |
Raw water / Fresh water |
Biological Filter |
Stone/Clay/Glass |
|
Boiler Feed water |
Aeration |
Effluent Treatment |
Chemicals |
|
Fuel Oil |
Biological Filter |
Regulating Tank |
Petrochemicals |
|
Kerosene |
Water Purifying |
Anaerobic reactor |
Foods |
|
DI water |
Fire-fighting water |
Leachate Storage |
Plasthetics |
|
Coal Storage |
Saline Water/Brine Water |
Irrigation water |
Grain / Seeds |
|
Diesel |
Sedimention Container |
Water Purifying |
|
|
Drilling mud |
Ro Water |
Sedimentation Container |
|
|
Reverse osmosis water |
Sea water desalinization |
Sludge Tank |
|
|
Fly ash silo |
Lime Silo |
Animal Wastes |
|
|
|
Clarification Pool |
|
|
