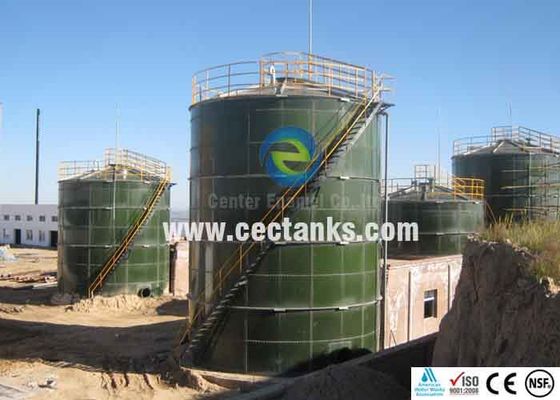

Above ground storage tanks , anaerobic waste water treatment
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012323 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012323 |
| Permeability: | Gas / Liquid Impermeable | Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height |
| Hardness: | 6.0 ( Mohs ) | Adhesion: | 3,450 N/cm |
| Service Life: | Over 30 Years | Capacity: | 20 K3 - 18,000 M3 |
| High Light: | commercial water storage tanks,municipal water storage tanks |
||
Product Description
Large Capacity Industrial Water Tanks With Low Project Cost
Product introduction
The industrial effluent tanks are also called glass fused to steel tank (GFS tanks) which consist of:
- 1. Enamel coating steel sheet.
- 2. Special sealant
- 3. Self-locking bolts
Why choose our industrial effluent tanks to deal with the waste water / Sewage ?
1. Good chemical and physical performance: To improve the steel quality performance after enameling, we developed special steel ART310 with Angang Steel Group in 2005. The Ti-rich steel not only increase the adhesive power between steel and enamel coating, but also significantly solve fish scaling problem. More over, the color the tanks could be customized upon your request.
2. Large capacity: wide range of capacity of selection up to 18,000 m3.
3. Easy installed, expanded, dismantle, removed: The modular system allows not only fast rapid
installation, expand, or removed not subject to any weather, but also easily repaired and clean.
4. conservation and environmental.
5. Suitable for various kind of fields: Not only industrial effluent /Waste water, sewage treatment, it also can be sued in power and energy, agriculture storage tanks, bio gas digester.
6. Low project cost: as short construction, installed, the cost is much lower then other traditional tanks.
7. Our GFS tanks already passed ISO9001-2000 quality system certification, and product and design can reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid-proof and alkali- proof ) enameled sheet now
Below is the detail comparison between various tank:
|
Item |
Concrete Tank |
Carbon steel tank |
Enamel tank |
LIPP tank |
|
Beautiful degree |
Low |
Low |
High |
High |
|
Temperature adaption |
A stress |
Adapt to low temperature |
Adapt to low temperature |
Adapt to low temperature |
|
Shape |
Any shape |
Round shape |
Round shape |
Round shape |
|
Ground Or underground |
Both |
Ground |
Both |
Ground |
|
Corrosion resistance |
Normal |
No resistance to corrosion |
Good |
Not |
|
Abrasion resistance |
Good |
Bad |
Good |
Bad |
|
Easy to clean |
Bad |
Bad |
Good |
Normal |
|
Easy to repair |
Normal |
Good |
Good |
Bad |
|
Weight (T) |
heavy |
Little heavy |
light |
Little light |
|
Tank cost |
middle |
high |
low |
low |
|
Tank temperature protect |
no |
need |
need |
need |
|
Anti-corrosive Treatment |
no |
need |
no |
need |
|
Annual anti-corrosive cost |
no |
High cost |
no |
High cost |
|
Corrosion resistance |
normal |
no |
superior |
normal |
|
Abrasion resistance |
good |
bad |
good |
bad |
|
Service life |
30 |
10 |
30 |
25 |
With more than 20 years development, Center enamel already exported to over 20 countries in the world including Belgium, France, Malaysia, Singapore, USA, Niger and so on.
-- 2008 Beijing Olympics Games wastewater project
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009-2013 Palm oil wastewater treatment project in Indonesia
-- 2011 Anyang city Biogas project
-- Chengde Biology waste water project
-- Brewery wastewater treatment
-- Shandong Garbage waste water treatment project
-- Pharmacy waste water treatment project
-- 2013 Sichuan Chengdu Pharmaceutical wastewate treatment
-- 2014 Urban sludge treatment project- Kazakhstan
