Industrial Glass Lined Water Storage Tanks for Wastewater Treatment

China Industrial Glass Lined Water Storage Tanks for Wastewater Treatment supplier
Industrial Glass Lined Water Storage Tanks for Wastewater Treatment supplier Industrial Glass Lined Water Storage Tanks for Wastewater Treatment supplier Industrial Glass Lined Water Storage Tanks for Wastewater Treatment supplier

Large Image :  Industrial Glass Lined Water Storage Tanks for Wastewater Treatment

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012319

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Elastic: Same As Steel Sheet , Around 500KN/mm
Serive Life: More Than 30 Years Coating Color: Dark Blue, Dark Green , White, And Customized
Easy Yo Clean: Smooth, Glossy, Inert, Anti-adhesion Coating Thickness: 4.0.25mm - 0.4mm, Two Coating Internal And External
Permeability: Gas And Liquid Impermeable Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height

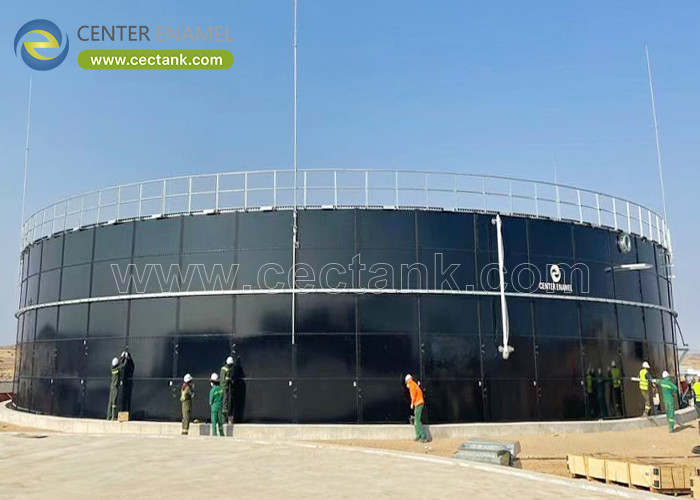

Industrial Glass Lined Water Storage Tank with Beautiful Appearance for Wastewater Treatment





Description of Glass Lined Storage Tank :



Center Enamel tanks are glass - fused - to - steel tanks used to store water and other industrial liquids. Hundreds of tanks have been installed in countries around the world. Glass lined water storage tank is named ‘ glass - fused -  to - steel tank ’, that’s GFS tank, which consists of enamel steel sheet, special sealant and self-locking bolts. Enamel coating is the traditional anti-corrosion technology for steel plate; it has beautiful appearance, delicate texture. We adopt first class enameling production technology and special enamel steel, products quality can reach international standards, and already been successfully applied in various engineering, agricultural sewage, urban wastewater treatment and biogas engineering.



Application of Glass Lined Storage Tank :



Glass-lined storage tanks are used for storage of hot or cold potable water and other industry or municipal application.

  • Potable Water and Utility Projects
  • Fire Protection & Sprinkler Systems
  • Groundwater & Water Well Assistance Systems
  • Livestock Sustenance Systems
  • Food & Dairy Processing Systems
  • Dry Feed & Grain Storage Silos
  • Industrial Chemical & Mixing Tanks
  • Wastewater Storage



Fundamental Charteristics of Glass Lined Storage Tank :



Coating Color : dark green, white, blue, color can be customized

Coating Thickness : 0.25~0.40 mm, double coating

Acid and alkalinity : Standard sheet PH: 3~11

Proof :            Special sheet PH: 1~14

Adhesion :         3,450 N / cm

Elastic :            Same as steel sheet, around 500 Kn / mm

Hardness :          6.0( Mohs )

Service life :         >30Years

Holiday test :         >1500v

Easy to clean :    Smooth, glossy, inert, non adhesive

Corrosion resistance :  Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds



Comparison of Various Tank Characteristics :



Item

Concrete Tank

Carbon steel tank

Enamel tank

LIPP tank

Beautiful degree

Low

Low

High

High

Temperature adaption

A stress

Adapt to low temperature

Adapt to low temperature

Adapt to low temperature

Shape

Any shape

Round shape

Round shape



Round shape

Ground Or underground

Both

Ground

Both

Ground

Corrosion resistance

Normal

No resistance to corrosion

Good

Not

Abrasion resistance

Good

Bad

Good

Bad

Easy to clean

Bad

Bad

Good

Normal

Easy to repaire

Normal

Good

Good

Bad



Advantage of Glass Lined Storage Tank :

  • Lowest maintenance requirements over tank life
  • Lowest total life cycle cost
  • Faster construction
  • Expandable
  • Available in diameters from 11 feet ( 3.3 m ) to 204 feet ( 62.2 m ) and capacity from 20,000 gallons ( 75 cu m ) to over 6 million gallons ( 22,700 cu m )
  • Specific tank designs, options and accessories to meet customer needs
