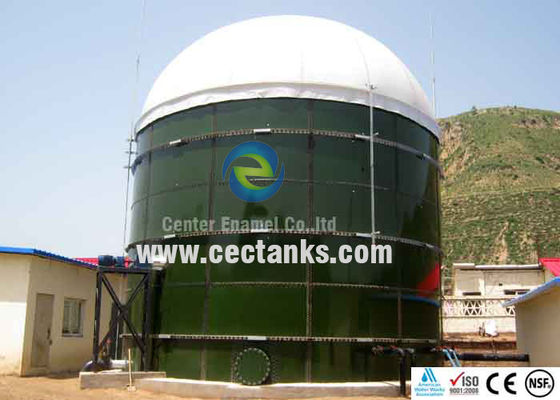

Corrosion Resistant Glass Fused Steel Tanks Used As Anaerobic Reactor

China Corrosion Resistant Glass Fused Steel Tanks Used As Anaerobic Reactor supplier
Corrosion Resistant Glass Fused Steel Tanks Used As Anaerobic Reactor supplier Corrosion Resistant Glass Fused Steel Tanks Used As Anaerobic Reactor supplier

Large Image :  Corrosion Resistant Glass Fused Steel Tanks Used As Anaerobic Reactor

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012301

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Elastic: Same As Steel Sheet , Around 500KN/mm Coating Color: Dark Blue, Dark Green , White, And Customized
Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height Coating Thickness: 0.25mm - 0.4mm, Two Coating Internal And External
Service Life: Over 30 Years Capactiy Available: 20 M3 To 18,000 M3

 Superior Corrosion Resistant Glass Fused Steel Tank Used As Anaerobic Reactor





Introduction of glass fused steel tank



Glass fused steel tank is superior in corrosion resistant as it is actually the combination of “ glass ” and “ steel “ . So it has the advantages of both : superior corrosion resistant of glass , and strength and flexibility of glass . This is the combination of both to achieve the best . Glass fused steel tank is the best tank to be used as anaerobic reactor, especially when the media inside than tank could be highly corrosive. To name a few , glass fused is used as many kinds of anaerobic reactor , such as CSTR, USR, UASB, EGSB, MBR , ect.



We are the leader manufacturer of glass fused steel tank in China established in 1989 . Until to now, we have built glass fused steel tanks in many countries including the United States and Australia and specially in Asia .





Glass fused steel tank specifications



Coating color

dark blue, dark green , white, and customized

A standard steel plate size

effective size 2400mm x 1200 m

Steel plates thickness

3mm - 12mm , depends on the diameter & height

Coating thickness

0.25mm - 0.4mm, two coating internal and external

Acid and alkalinity proof

standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Adhesion

3,450N/cm

Elastic

same as steel sheet , around 500KN/mm

Hardness

6.0 Mohs

Service life

>30 years

Spark test

>1500 V

Permeability

gas and liquid impermeable

Easy yo clean

smooth, glossy, inert, anti-adhesion

Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil,

salt fox, organic and inorganic compounds





Glass fused steel tank advantages



1. superior performance in corrosion resistance and against rust : glass fused steel tank is combination of glass and steel . Glass is coated to steel and become a protection layer to the tank body

2. factory fabrication tank . No painting or spray on erection site . The process of glass coating is finished in factory, so there is no spray works to be done on job site . Glass fused steel tank is a kind of factory pre-fabricated tank

3. minimal maintenance cost : once it is erected, there is minimal maintenance requirement needed.

5.  No need crane or other large equipment during erection. Since glass fused steel tank is bolted type tank . So no need for crane to hang the tanks and located it. Workers just assemble steel  plates and bolted them piece by piece

6. not subjected to severe weather and environment. Glass fused steel tank is not subjected to environmental and weather. It can be erected at remote places like desert and extremely cold places.

7. can be designed to future expansion, dismantle or re-movement. If it is specified before the tank manufacturing that a future expansion is needed, engineer will make the structure suitable for future enlarged capacity. It can be realized by simply adding another rings

8. free service for technical drawings . Once a order deal, all drawings, pictures, technical documents are provided to customer free of charge .

9. turn key service from proposal to tank commissioning . Our team provides proposals according to customer’s tender file or FRQ , shipment of material, tank erection , water proof treatment and commissioning.



Glass fused steel tank applications



Water supply and water treatment

Waste water treatment

Sewage and effluent treatment

Power and energy

Industrial bulk storage

Agriculture irrigation system

Fire protection system





Antomatic processing line



Corrosion Resistant Glass Fused Steel Tanks Used As Anaerobic Reactor

Corrosion Resistant Glass Fused Steel Tanks Used As Anaerobic Reactor
