Large Capacity Glass Fused Steel Tanks For Sewage And Effluent Treatment Projects

China Large Capacity Glass Fused Steel Tanks For Sewage And Effluent Treatment Projects supplier
Large Capacity Glass Fused Steel Tanks For Sewage And Effluent Treatment Projects supplier Large Capacity Glass Fused Steel Tanks For Sewage And Effluent Treatment Projects supplier

Large Image :  Large Capacity Glass Fused Steel Tanks For Sewage And Effluent Treatment Projects

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012103

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Elastic: Same As Steel Sheet , Around 500KN/mm Hardness: 6.0 Mohs
Service Life: >30 Years Spark Test: >1500 V
Permeability: Gas And Liquid Impermeable Easy Yo Clean: Smooth, Glossy, Inert, Anti-adhesion
Corrosion Resistance: Excellent ! Coating Thickness: 0.25mm - 0.4mm, Two Coating Internal And External

Glass Fused Steel Tank In Large Capacity Used In Sewage And Effluent Treatment Projects





Brief introduction of glass fused steel tank



Glass-Fused-to-Steel Tank is glass ( enamel ) coated on Ti-rich special steel plates.

This is the only tank where two material are fused to achieve the best of both : the superior corrosion

resistant of glass combined with the strength and flexibility of steel . The glass steel plates are connected

by high grade bolts on erection site and as well as sealed by silicone sealant. The tank is gas and liquid

impermeable.



Glass fused steel tank advantages



1. superior performance in corrosion resistance and against rust : glass fused steel tank is combination of

glass and steel . Glass is coated to steel and become a protection layer to the tank body

2. factory fabrication tank . No painting or spray on erection site . The process of glass coating is finished

in factory, so there is no spray works to be done on job site . Glass fused steel tank is a kind of factory

pre-fabricated tank

3. minimal maintenance cost : once it is erected, there is minimal maintenance requirement needed.

5.  No need crane or other large equipment during erection. Since glass fused steel tank is bolted type

tank. So no need for crane to hang the tanks and located it. Workers just assemble steel  plates and

bolted them piece by piece

6. not subjected to severe weather and environment. Glass fused steel tank is not subjected to environmental and weather. It can be erected at remote places like desert and extremely cold places.

7. can be designed to future expansion, dismantle or re-movement. If it is specified before the tank

manufacturing that a future expansion is needed, engineer will make the structure suitable for future

enlarged capacity. It can be realized by simply adding another rings

8. free service for technical drawings . Once a order deal, all drawings, pictures, technical documents

are provided to customer free of charge .

9. turn key service from proposal to tank commissioning . Our team provides proposals according to customer’s tender file or FRQ , shipment of material, tank erection , water proof treatment and commissioning.





 Glass fused steel tank specifications

  1. Coating color : dark blue, dark green , white, and customized
  2. A standard steel plate size : effective size 2400mm x 1200 m
  3. Steel plates thickness : 3mm - 12mm , depends on the diameter & height
  4. Coating thickness : 0.25mm - 0.4mm, two coating internal and external
  5. Acid and alkalinity proof : standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
  6. Adhesion : 3,450N/cm
  7. Elastic : same as steel sheet , around 500KN/mm
  8. Hardness : 6.0 Mohs
  9. Service life : >30 years
  10. Spark test : >1500 V
  11. Permeability: gas and liquid impermeable
  12. Easy yo clean : smooth, glossy, inert, anti-adhesion
  13. Corrosion resistance : excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil,
  14.  salt fox, organic and inorganic compounds



Technology advantages :

  • Being engaged in enamel industry for over 26 years, we process more than 200 patents of enamelfrit formulas.
  • Complied with quality system certificate ISO9001-2008,glass-fused-to-steel tank manufacturing standard Q/01ZT012009 and NSF (National Sanitation Foundation) .
  • We make structure design of GFS tank according to AWWA D103-09 and OSHA.





Glass fused steel tank applications

  • regulating tank
  • Aerobic reactor
  • Anaerobic reactor
  • Sedimentation tank
  • Sludge holding tank
  • Effluent tank
  • Buffer pool
  • Biological filter
  • Water purifying tank
  • Aeration tank
  • Clarification pool
  • Contact oxidation tank
  • Dosage tank
  • EGSB : expanded granular sludge bed
  • UASB : up - flow anaerobic sludge blanket
  • SBR : sequence batch reactor



Glass fused steel tank roof options

  • Glass fused steel material roof
  • Aluminum sloped deck roof
  • Glass reinforced polyester roof
  • Single / double membrane roof
  • Aluminum geodesic dome roof



Automatic processing line

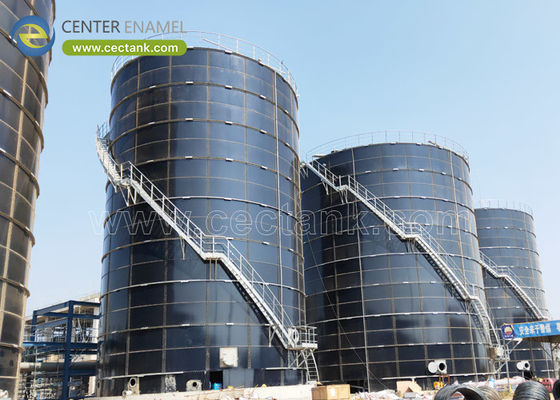

Large Capacity Glass Fused Steel Tanks For Sewage And Effluent Treatment Projects

Large Capacity Glass Fused Steel Tanks For Sewage And Effluent Treatment Projects
