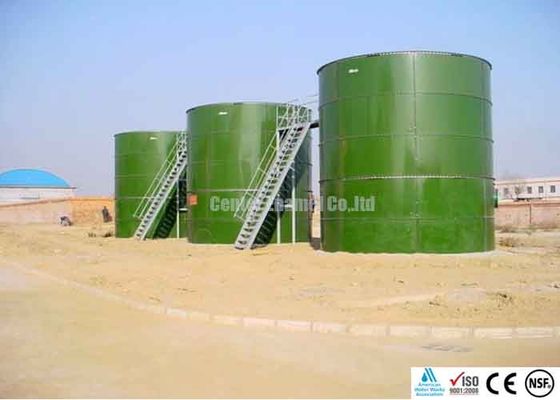

Industrial Glass Fused Steel Tanks For Municipal Waste Water Treatment Process

China Industrial Glass Fused Steel Tanks For Municipal Waste Water Treatment Process supplier
Industrial Glass Fused Steel Tanks For Municipal Waste Water Treatment Process supplier Industrial Glass Fused Steel Tanks For Municipal Waste Water Treatment Process supplier

Large Image :  Industrial Glass Fused Steel Tanks For Municipal Waste Water Treatment Process

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012102

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Coating Color: Standard Dark Green And Dark Blue, Color Can Be Customized Coating Thickness: 0.25mm - 0.4mm, Two Coating Internal And External
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Adhesion: 3,450N/cm
Elastic: Same As Steel Sheet , Around 500KN/mm Hardness: 6.0 Mohs
Service Life: >30 Years Spark Test: >1500 V

Glass Fused Steel Tank Customized Size For Industrial And Municipal Waste Water Treatment Process





What is glass fused steel tank ?





The steel round (cylindrical) shell of the tank is built from two-layer enameled sheets coated on both sides. The sheets are attached with special high-grade bolts and sealed by constantly flexible silicone (sealant). The surface of connecting material and the shell itself are properly treated.


This is the only tank finish where two materials are fused together to achieve the best of both: the strength and flexibility of the steel combined with the corrosion resistance of the glass. The high temperature fusion of glass to steel fired at 850 degree results in an inert, durable finish. Applied to both interior and exterior, the GFS technology is able to withstand the rigorous of the construction site and provide many years of trouble free service in harsh environments.



 Glass fused steel tank specifications

  • Coating color : standard dark green and dark blue, color can be customized
  • Coating thickness : 0.25mm - 0.4mm, two coating internal and external
  • Acid and alkalinity proof : standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
  • Adhesion : 3,450N/cm
  • Elastic : same as steel sheet , around 500KN/mm
  • Hardness : 6.0 Mohs
  • Service life : >30 years
  • Spark test : >1500 V
  • Permeability: gas and liquid impermeable
  • Easy yo clean : smooth, glossy, inert, anti-adhesion
  • Corrosion resistance : excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds



Why choose glass fused steel Tanks?



Think about these advantages :

* superior performance in corrosion resistance and against rust

*factory fabrication tank . No painting or spray on erection site .

* minimal maintenance cost

* No need crane or other large equipment during erection

* not subjected to severe weather and environment.

* can be designed to future expansion, dismantle or re-movement.

* free service for technical drawings

* turn key service from proposal to tank commissioning .



Technology advantages :



* Being engaged in enamel industry for over 26 years, we process more than 200 patents of enamel

 frit formulas.

* Complied with quality system certificate ISO9001-2008,glass-fused - to-steel tank manufacturing standard Q/01ZT012009 and NSF (National Sanitation Foundation) .

 * We make structure design of GFS tank according to AWWA D103-09 and OSHA.





Glass fused steel tank applications



regulating tank

Aerobic reactor

Anaerobic reactor

Sedimentation tank

Sludge holding tank

Effluent tank

Buffer pool

Biological filter

Water purifying tank

Aeration tank

Clarification pool

Contact oxidation tank

Dosage tank

EGSB : expanded granular sludge bed

UASB : upflow anaerobic sludge blanket

SBR : sequence batch reactor





Glass fused steel tank roof options

  1. Glass fused steel material roof
  2. Aluminum sloped deck roof
  3. Glass reinforced polyester roof
  4. Single/double membrane roof
  5. Aluminum geodesic dome roof



Manufacturing Machine



Industrial Glass Fused Steel Tanks For Municipal Waste Water Treatment Process

Industrial Glass Fused Steel Tanks For Municipal Waste Water Treatment Process

Industrial Glass Fused Steel Tanks For Municipal Waste Water Treatment Process
