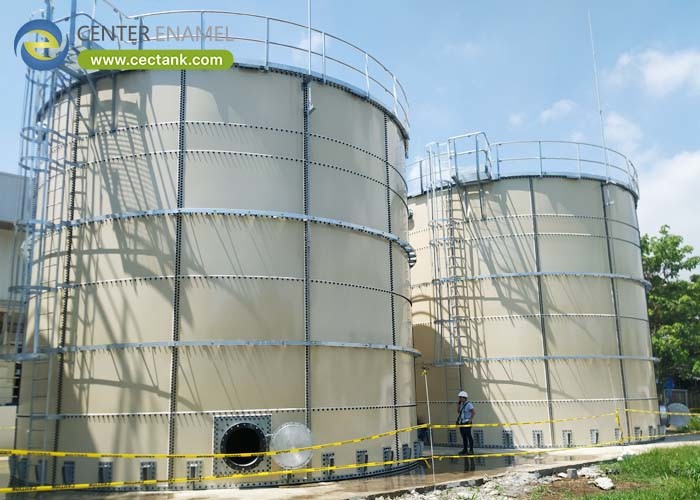

Maximizing Efficiency Epoxy Coated Bolted Tanks For Landfill Leachate Management

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012311
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012311
PH Range: A Grade Sheet PH:3-11, AA Grade Sheet PH : 1-14 Coating Thickness: Two Coating Internal And External
Corrosion Resistance: Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Adhesion: 3,450N/cm
Permeability: Gas And Liquid Impermeable Serive Life: More Than 30 Years
High Light:

Maximizing Efficiency Epoxy Coated Bolted Tanks

,

Leachate Management Epoxy Coated Bolted Tanks

Product Description

Maximizing Efficiency: Cost-Effective Epoxy-Coated Bolted Tanks for Landfill Leachate Management



In the realm of waste management, the proper handling and containment of landfill leachate, a byproduct of decomposing waste, are paramount. Landfill leachate contains various contaminants that pose environmental risks if not managed effectively. Epoxy-coated bolted tanks have emerged as a cost-effective and reliable solution for storing and treating landfill leachate, offering numerous advantages in terms of affordability, durability, and environmental protection.



Landfill leachate is a complex liquid that forms as rainwater percolates through decomposing waste, extracting various chemicals and pollutants along the way. If left untreated or improperly contained, landfill leachate can contaminate soil, groundwater, and surface water, posing significant environmental and public health risks. Proper containment and treatment of landfill leachate are essential to prevent pollution and mitigate environmental damage.



The Role of Epoxy-Coated Bolted Tanks:

Epoxy-coated bolted tanks offer an efficient and cost-effective solution for storing and treating landfill leachate. These tanks consist of steel panels coated with epoxy, providing exceptional corrosion resistance and durability. Bolted tank construction allows for easy assembly and installation, reducing construction time and labor costs compared to traditional welded tanks. Moreover, the modular design of bolted tanks facilitates expansion or relocation as operational needs evolve, offering flexibility and adaptability for landfill facilities.





With over 30 years of experience in tank research, production, and construction, Center Enamel, in collaboration with the world-leading paint and coating manufacturer AkzoNobel, has jointly developed the technology of fused epoxy coating. Epoxy coating is an advanced anti-corrosion coating known for its excellent corrosion resistance and adhesion. Additionally, the epoxy coating technology employs a special construction process - electrostatic spraying, which enhances the uniformity and adhesion of the coating, effectively extending the lifespan of the tank.



Tanks coated with epoxy resin using this technology are not only technologically advanced and cost-effective but also easy and quck to install. The quality meets requirements such as AWWA D103-09 and ISO 9227/ASTM B117. Upon its introduction, it has gained recognition from customers.



Properties of Epoxy coated steel tank

Application Test Standard Result
Coating Color Standard RAL 5015 sky blue Other colors are available
Dry Film Thickness Average Dry Thickness 5~10 miles /125 ~250 microns(internal)
5~10 miles /125 ~250 microns(epoxy primer+ topcoat)
Holiday Test ≥1100V (all panels) Zero-discontinuity at test voltage
Hot water immersion 90 days, 70° AWWA C550-05 Meets/exceeds standard
Corrosion Resistance Salt Spray ISO 9227/ASTM B117 Pass
Impact Resistance ASTM D2794 Pass 160 in-ibs direct & reverse impact
PH Range 3~12
Abrasion Resistance Adhesion ASTM D3359 Adhesion ASTM D3359
Hardness ISO15184 / ASTM D3363 2H
Chemical Immersion test 50% NaOH, 50% H2S04 Meets/exceeds industry standard
UV Resistance outdoor exposure testing 5 years
Color Stability outdoor exposure testing 5 years



Advantages of Epoxy-Coated Bolted Tanks for Landfill Leachate Management:



Cost-Effectiveness: Epoxy-coated bolted tanks are significantly more cost-effective than alternative storage options, such as concrete tanks or welded steel tanks. The lower initial investment, combined with reduced installation and maintenance costs, makes epoxy-coated bolted tanks a financially prudent choice for landfill operators.



Durability and Longevity: The epoxy coating on bolted tanks provides superior corrosion resistance, ensuring long-term performance and minimal maintenance requirements. This durability extends the lifespan of the tanks, reducing the need for costly repairs or replacements over time.



Environmental Protection: Proper containment of landfill leachate is essential to prevent environmental contamination. Epoxy-coated bolted tanks offer a secure and leak-proof storage solution, minimizing the risk of leachate seepage and groundwater pollution. Additionally, the epoxy coating is formulated to be environmentally friendly, with low volatile organic compound (VOC) emissions and minimal impact on surrounding ecosystems.



Scalability and Flexibility: Landfill operations may evolve over time, necessitating changes in leachate storage capacity or configuration. Epoxy-coated bolted tanks can be easily expanded, relocated, or repurposed to accommodate changing needs, providing flexibility and scalability for landfill management.



Applications of Epoxy-Coated Bolted Tanks in Landfill Leachate Management:

Epoxy-coated bolted tanks are utilized in various aspects of landfill leachate management, including:



Leachate Collection and Storage: Bolted tanks serve as primary storage vessels for collecting and temporarily storing landfill leachate before treatment or disposal.



Leachate Treatment: Bolted tanks can house treatment systems for removing contaminants from landfill leachate, such as filtration, sedimentation, and biological treatment processes.



Leachate Recirculation: In some cases, treated leachate may be recirculated back into the landfill to accelerate waste decomposition or control landfill gas production. Bolted tanks provide storage capacity for recirculated leachate prior to application.



Center Enamel combines the excellent performance of various tanks to provide customers with solutions composed of diverse equipment combinations. This approach allows us to flexibly meet the needs and requirements of different application fields. Throughout the project construction process, the teams at Center Enamel collaborate closely, actively coordinate, and prioritize each step, conducting rigorous checks at every level to ensure the smooth completion of projects.



From being a leader in the Asian GFS tank industry to becoming a diversified environmental equipment smart manufacturer in China, Center Enamel utilizes crucial core technologies to continuously iterate and upgrade equipment in research and development. This drives the sustained high-quality development of the company in the face of new challenges. Leveraging existing brand advantages, technological strengths, and team capabilities, the company will continue to focus on cutting-edge industry technologies. Adhering to a diversified development strategy, Center Enamel aims to elevate environmental business to new heights while jointly creating a beautiful picture of green hills and clear waters.
