Center Enamel Fusion Bonded Epoxy Tanks For Mud Storage Tanks

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012306
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012306
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.
Corrosion Resistance: Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Spark Test: >1500 V
Service Life: Over 30 Years Capactiy Available: 20 M3 To 18,000 M3
PH Range: A Grade Sheet PH:3-11, AA Grade Sheet PH : 1-14 High Light:

Center Enamel Fusion Bonded Epoxy Tanks

,

Bonded Epoxy Tanks For Mud Storage

Product Description

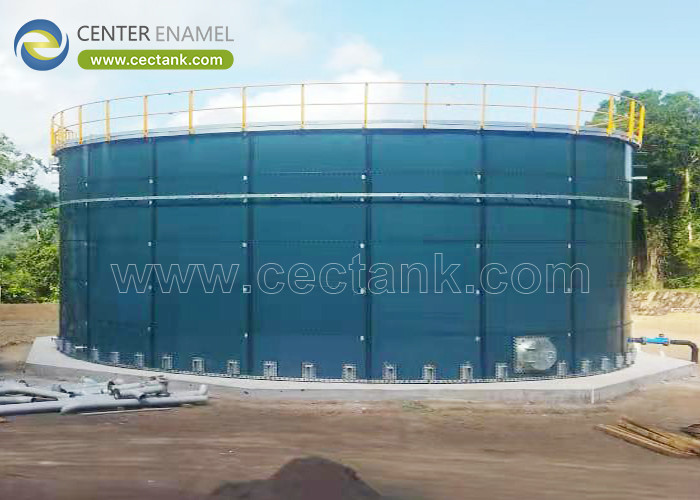

Center Enamel Fusion Bonded Epoxy Tanks, The Preferred Solution For Mud Storage Tanks



Center Enamel is a comprehensive high-tech enterprise whose main business is the R&D, manufacturing and sales of enamel assembled tanks, environmentally friendly diversified equipment, and the undertaking of environmentally friendly EPC projects and anaerobic process sections. During the project implementation process, the company continues to increase its research and development efforts, gathers scientific research and technical strength, and forms a service system roofing from research and development to after-sales, which can quickly and high-quality tailor-made solutions for customers.


With more than 30 years of experience in storage tank R&D, production and construction, Center Enamel and AkzoNobel, the world's leading paint and coatings manufacturer, jointly developed fusion-bonded epoxy coating technology. This technology uses an advanced anti-corrosion coating with excellent corrosion resistance and adhesion. Epoxy coating technology also uses a special electrostatic spraying process to improve the uniformity and adhesion of the coating, effectively extending the service life of the tank.



Fusion Bonded Epoxy Tanks are manufactured using epoxy coating technology, which is not only technologically leading, but also cost-effective and easy to install. Its quality meets the requirements of standards such as AWWA D103-09, ISO 9227 and ASTM B117, and has won wide recognition from customers once it was launched. Center Enamel provides customers with excellent environmental solutions through continuous innovation and product quality improvement, and has established an outstanding position in the industry.



Properties of Fusion-Boned Epoxy Steel Tanks

Application Test Standard Result
Coating Color Standard RAL 5015 sky blue Other colors are available
Dry Film Thickness Average Dry Thickness 5~10 miles /125 ~250 microns(internal)
5~10 miles /125 ~250 microns(epoxy primer+ topcoat)
Holiday Test ≥1100V (all panels) Zero-discontinuity at test voltage
Hot water immersion 90 days, 70° AWWA C550-05 Meets/exceeds standard
Corrosion Resistance Salt Spray ISO 9227/ASTM B117 Pass
Impact Resistance ASTM D2794 Pass 160 in-ibs direct & reverse impact
PH Range 3~12
Abrasion Resistance Adhesion ASTM D3359 Adhesion ASTM D3359
Hardness ISO15184 / ASTM D3363 2H
Chemical Immersion test 50% NaOH, 50% H2S04 Meets/exceeds industry standard
UV Resistance outdoor exposure testing 5 years
Color Stability outdoor exposure testing 5 years





The standards for measuring projects must not only meet the needs of technology and quality, but also transform into overall standards of sustainability, quality and efficiency improvement, energy conservation and carbon reduction. Center Enamel actively responds to market and policy changes, and based on its rich experience and R&D strength, it empowers diversified intelligent manufacturing of environmentally friendly equipment and environmentally friendly EPC projects with its innovative R&D technology for enamel assembly tanks to meet diverse customer needs and project requirements.


Today, Center Enamel’s business roofs food waste, landfill leachate, municipal sewage, biogas projects, aquaculture sewage, industrial sewage, drinking water, fire water and other fields. In the future, Center Enamel's R&D results will be promoted and applied in more projects, striving to achieve win-win economic, environmental and social benefits and promote high-quality development of the environmental protection industry.
