20m3 Waste Water Storage Tanks For Yogurt Fresh Milk Pure Milk Milk Powder Dairy Products

20m3 Waste Water Storage Tanks For Yogurt Fresh Milk Pure Milk Milk Powder Dairy Products
20m3 Waste Water Storage Tanks For Yogurt Fresh Milk Pure Milk Milk Powder Dairy Products

Large Image :  20m3 Waste Water Storage Tanks For Yogurt Fresh Milk Pure Milk Milk Powder Dairy Products

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012306
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.
Corrosion Resistance: Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Spark Test: >1500 V
Service Life: Over 30 Years Capactiy Available: 20 M3 To 18,000 M3
PH Range: A Grade Sheet PH:3-11, AA Grade Sheet PH : 1-14
High Light:

20m3 Waste Water Storage Tanks

,

Bolted Steel Sludge Wastewater Storage Tanks

,

Anti Adhesion Wastewater Storage Tanks

Nowadays, yogurt, fresh milk, pure milk, milk powder and other dairy products have entered thousands of households and



Bolted Steel Sludge holding Tank For Wastewater Treatment Plants



Sludge Storage Tanks



Center Enamel manufacture Sludge Storage Tanks from Glass-Fused-to-Steel Plate to suit your specific application. Sludge is a thick, soft mud and typically the by-product of wastewater treatment, industrial wastewater solids and settled suspension from potable water treatment. Often it contains various types of pathogens as well as heavy contaminants, in the case of industrial waste, this can include chemical pollutants. Sludge contaminated by chemical pollutants or heavy metals and demands complex treatment. Other applications are sludge settlement tanks on small sewage treatment plants, the concentration of food and agricultural waste for anaerobic digestion, removal of grit for water reuse on effluent treatment plants and concentration of apple mulch after cider fermentation.



Center Enamel bolted steel tanks are widely used as sludge storage tanks for effluent & sludge storage. All our bolted steel tanks engineering design are meet or exceeded the AWWA D103-09 and EN/ISO28765:2011 standards.



In order to prevent the damage of sludge to the environment, we need to use the sludge storage tank for sludge storage and treatment. Sludge mainly comes from sewage treatment, high organic content, perishable, smelly. Sludge including activated sludge, humus sludge, concentrated sludge, are corrosive. Glass fused to steel tank is the best choice for sludge storage. It combines the strength of steel with the excellent chemical and physical corrosion resistance of glass, with a service life of over 30 years and low maintenance requirement.



Sludge Storage Tank Specifications

Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds





Leading Bolted Steel Sludge Tanks Manufacturer in China



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel bolted sludge storage Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel bolted sludge storage tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel bolted sludge storage tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

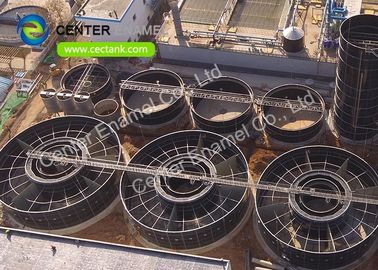

Sludge storage Case Studies
