Glass Lined Steel Tanks As Anaerobic Digesters For Biogas Project In Inner Mongolia

China Glass Lined Steel Tanks As Anaerobic Digesters For Biogas Project In Inner Mongolia supplier
Glass Lined Steel Tanks As Anaerobic Digesters For Biogas Project In Inner Mongolia supplier

Large Image :  Glass Lined Steel Tanks As Anaerobic Digesters For Biogas Project In Inner Mongolia

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012806

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Coating Color: Dark Blue, Dark Green , White, And Customized Easy Yo Clean: Smooth, Glossy, Inert, Anti-adhesion
Coating Thickness: 0.25mm - 0.4mm, Two Coating Internal And External Permeability: Gas And Liquid Impermeable
Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height Elastic: Same As Steel Sheet , Around 500KN/mm
PH: 1 - 14 Serive Life: More Than 30 Years

Glass Lined Steel Tanks As Anaerobic Digesters For Biogas Project In Inner Mongolia

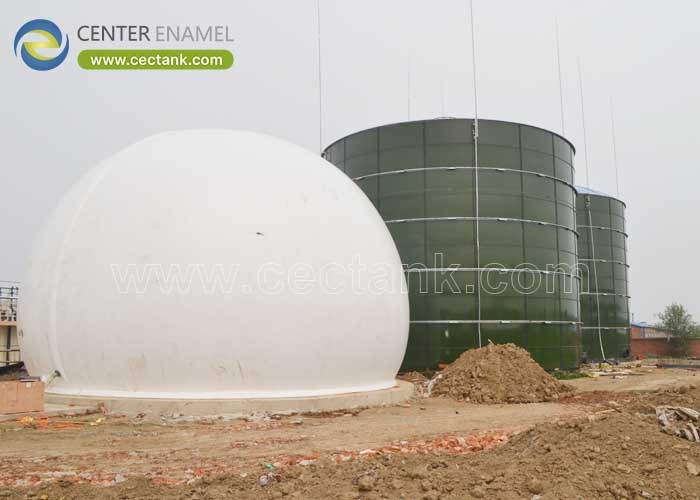

This is a biogas project by using glass fused to steel tank as anaerobic digester in Inner Mongolia, with corn straw as raw material, livestock and poultry manure , other organic waste were added to generate biogas on a large scale and in an industrial way. We manufactured 4 sets of glass lined steel tanks as anaerobic digesters for this biogas project . Due to the operation temperature design requirement, all anaerobic digesters are insulated. And generated biogas can be temporarily stored in the double membrane roofs which integrated on the top of glass lined steel tanks.



Utilizing glass lined steel tank as anaerobic digester is not new and has long been used to digest sewage sludge at waste water treatment plants to reduce the organics of the sludge before disposing of it. The resulting biogas is typically flared or burned to heat the digester itself. Landfills are another example where anaerobic decomposition occurs and could be considered a type of anaerobic digester, although the landfill is not well sealed. Larger landfills use glass fused to steel tank as biogas storage tank to collect the landfill biogas and route it to engines to produce electricity.



Glass Lined Steel Tanks Specifications



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds







Glass Lined Steel Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.



Glass Lined Steel Tanks Project References



Glass Lined Steel Tanks As Anaerobic Digesters For Biogas Project In Inner Mongolia
