30000 Gallons Glass Fused To Steel Water Tanks For Industrial Liquid Storage
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012631 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012631 |
| Volume Range: | From 20 M3 To 18,000 M3 | Lifespan: | More Than 30 Years |
| Coating Thickness: | 0.35 Mm | Coating Color: | Customized |
| Roof Type: | Glass Steel Roof, Membrane Roof, Aluminum Roof, GRP Roof | Design According To: | AWWA D 103 , OSHA |
| Tank Color: | Dark Green, Dark Blue, Light Blue And Customized | Tank Material: | Glass Coated Steel Sheets |
| High Light: | liquid fertilizer storage tanks,crude oil storage tank |
||
Product Description
Glass fused to steel water tank is a kind of factory fabrication tank , which made of glass coated on Ti-rich special steel plates . The steel plates are coated with enamel powder ( mixing with 10-20 different materials ) and burned in oven ( Temperature from 800 celsius to 950 celsius ) , which makes the steel sheet and glass coated greatly blend together . High recommended , all of the holes on the tank wall will be precutted on the workshop , instead of on job site . Accoding to the size of hole , there will be some flanges nozzles along with .
About the installation of glass fused to steel tank , there is no need big equipment to do it . Jacks are required during the installation , we will install the tank from the top ring , one by one until all of them are installed . Glass fused to steel tank is widely used in industrial water storage, because of its’s excellent corrosion resisitance, service life is more than 30 years.
Glass Fused To Steel Water Tanks Specification
| Coating Color | Standard dark green and blue or customized |
| Coating thickness | 0.25-0.45mm |
| Acid and alkalinity proof | Standard PH: 3~11, Special PH:1~14 |
| Adhesion | 3.450N/cm |
| Hardness | 6.0 (Mohs) |
| Service life | ≥30 Years |
| Holiday test | >1500V |
| Permeability | Gas liquid impermeable |
| Easy to clean | Smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | Excellent, suitable for wastewater, salt water, seawater, high sulfur crude oil, salt fog organic and inorganic compounds |
Glass Fused To Steel Water Tanks Manufacturer
Center Enamel bolted Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, and NFPA, etc. international standards. CEC bolted Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel bolted Steel tanks that have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

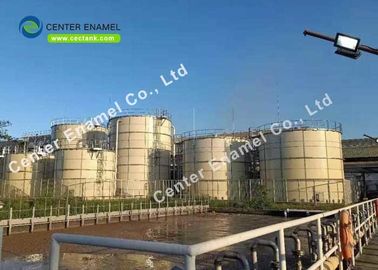

Glass Fused To Steel Water Tanks Projects
