Bolted Steel Liquid Storage Tanks with Excellent Corrosion Resistance

China Bolted Steel Liquid Storage Tanks with Excellent Corrosion Resistance supplier
Bolted Steel Liquid Storage Tanks with Excellent Corrosion Resistance supplier

Large Image :  Bolted Steel Liquid Storage Tanks with Excellent Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20170706011

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 10-30 days after deposit received
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof Chemical Resistance: Excellent
Size Of Panel: 2.4M * 1.2M Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Corrosion Resistance: Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals

Bolted steel Liquid Storage Tanks are the leader of liquid storage solutions, which is widely used as Water Storage Tanks for Potable Distribution Line, Bio Gas Plant, Waste Water Treat Plant (WWTP) etc. Glass lined liquid storage tanks combine the strength and flexibility of steel and the corrosion resistance of glass., Glass lined liquid tanks can resist corrosion of Waste Water of PH 1 - 14.





Bolted Steel Liquid Storage Tanks Manufacturer

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.



Advantages of the Glass Lined Steel Waste Water Storage Tanks



1. Short construction period

2. Superior corrosion resistance, service life is more than 30 yeas

3. Low project cost

4. Tank volume can be easily expanded

5. Beautiful appearance, color can be customized

6. Not subject to weather conditions

7. No need big installation equipment

8. Easily expand, dismantle, move



Bolted Steel Liquid Storage Tanks Specifications



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds

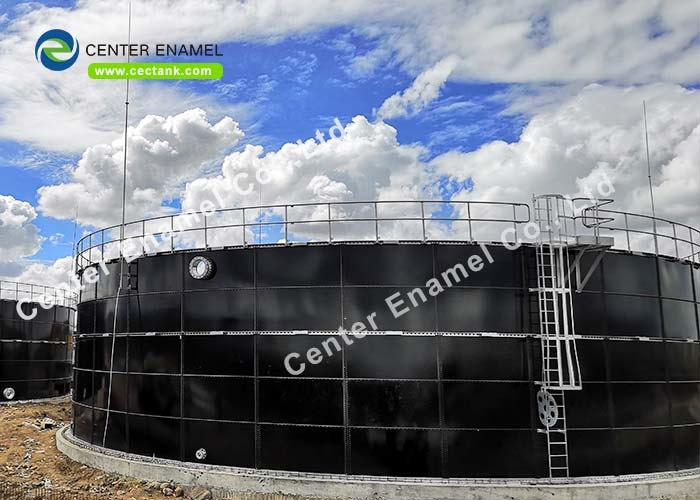

Bolted Steel Liquid Storage Tanks Project References
