NSF Certificated Glass Lined Steel Drinking Water Storage Tanks For Liquid Storage

China NSF Certificated Glass Lined Steel Drinking Water Storage Tanks For Liquid Storage supplier
NSF Certificated Glass Lined Steel Drinking Water Storage Tanks For Liquid Storage supplier

Large Image :  NSF Certificated Glass Lined Steel Drinking Water Storage Tanks For Liquid Storage

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012305

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Permeability: As And Liquid Impermeable Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14
Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect. Corrosion Resistance: Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds
Service Life: More Than 30 Years Spark Test: >1500 V
Service Life: Over 30 Years Capactiy Available: 20 M3 To 18,000 M3

NSF Certificated Glass Lined Steel Drinking Water Storage Tanks For Liquid Storage



Glass lined steel drinking water tanks are mainly consisted of glass fused to steel plates. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond. Combing the strength and flexibility of steel and the corrosion resistance of glass, the glass fused to steel plates can resist PH range from 1 to 14, which allows glass fused to steel plates used for various storage applications .



Glass Lined Steel Drinking Water Storage Tanks advantages



Short construction period, cost-effective tank solution

Superior corrosion resistance, service life is more than 30 years

Easy to install, no need for big installation equipment and/or very skilled labors

Tank volume can be easily expanded

It can be dismantled, removed and relocated

Elegant appearance, tank color can be customized



Glass Lined Steel Drinking Water Storage Tanks Specifications



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds







Glass Lined Steel Drinking Water Storage Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

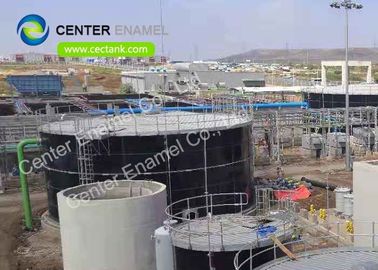

Glass Lined Steel Drinking Water Storage Tanks Project References






NSF Certificated Glass Lined Steel Drinking Water Storage Tanks For Liquid Storage
