NSF 61 Approved Glass Fused To Steel Potable Water Storage Tanks With FRP Roofs

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012306
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012306
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.
Corrosion Resistance: Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Spark Test: >1500 V
Service Life: Over 30 Years Capactiy Available: 20 M3 To 18,000 M3
PH Range: A Grade Sheet PH:3-11, AA Grade Sheet PH : 1-14 High Light:

glass fused to steel water tanks

,

above ground fuel storage tanks

,

NSF approved water storage tank

Product Description

NSF 61 Approved Glass Fused to Steel Potable Water Storage Tanks With FRP Roofs



Our glass fused to steel potable water storage tank is NSF approved. The steel round (cylindrical) shell of the tank is built from two-layer enameled sheets coated on both sides. The sheets are attached with special high-grade bolts and sealed by constantly flexible silicone (sealant). The surface of connecting material and the shell itself are properly treated. It has been recognized that glass fused tank as an excellent tank for water and wastewater treatment



Glass fused to steel Tanks are used in commercial and industrial applications for a wide variety of uses ranging from water and chemical storage to food applications and dry bulk storage silos. Standard capacities range from 20m3 to 20000m3.





Glass Fused to Steel Potable Water Storage Tanks Specifications



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds







Glass Fused to Steel Potable Water Storage Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

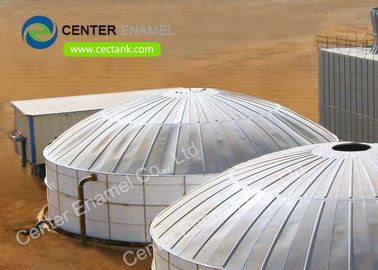

Glass Fused to Steel Potable Water Storage Tanks Project References



NSF 61 Approved Glass Fused To Steel Potable Water Storage Tanks With FRP Roofs 0
