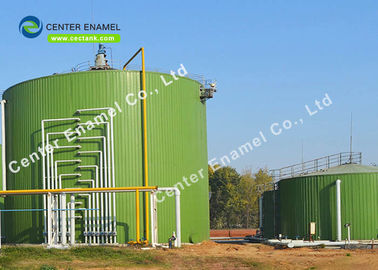

3000000 Gallons Bolted Steel Liquid Storage Tanks With Aluminum Alloy Trough Deck Roofs
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012654 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012654 |
| Adhesion: | 3,450N/cm | Elastic: | Same As Steel Sheet ,around 500KN /mm |
| Acid And Alkalinity Proof: | Standard Sheet PH:3~11 Special Sheet PH: 1~14 | Service Life: | ≥30 Years |
| Permeability: | Gas And Liquid Impermeable | Material: | Glass And Steel |
| Coating Color: | Can Be Customized | Coating Thickness: | 0.25mm~0.40mm & Double Coating |
| High Light: | liquid fertilizer storage tanks,crude oil storage tank |
||
Product Description
What is Bolted Steel Liquid Storage Tanks?
Bolted steel liquid storage tanks, also known as Glass-Fused-to-Steel Liquid Storage Tanks, these names all mean the same thing. Glass Lined Steel Liquid Storage Tanks combine the strength and flexibility of steel and the corrosion resistance of glass.The high-temperature fusion of glass to steel fired at 850°C results in an inert, durable finish. Applied to both interior and exterior, the GFS technology is able to withstand the rigors of the construction site and provide many years of trouble-free service in harsh environments.
Bolted steel liquid storage tanks are constructed from individual steel panels that are manufactured and finished at an our facility, then transported to the site and bolted together using the appropriate gaskets and fasteners for the product that will be stored. Unlike conventional concrete or welded storage solutions, which require extensive fabrication and finishing processes onsite, bolted tanks offer quick installation, lower shipping costs, and they can be assembled in nearly any type of weather, eliminating many weather-related delays.
Bolted Steel Liquid Storage Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Bolted Steel Liquid Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Bolted Steel Liquid Storage Tanks Projects
