Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | J2016012703 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012703 |
Adhesion: | 3,450N/cm | Elastic: | Same As Steel Sheet ,around 500KN /mm |
Acid And Alkalinity Proof: | Standard Sheet PH:3~11 Special Sheet PH: 1~14 | Hardness: | 6.0Mohs |
Holiday Test: | >1500v | Design Life: | 50 Years |
Capacity: | 20 M3 To 18,000 M3 | Tank Body ColorDark Green / Can Be Customized: | Dark Green / Can Be Customized |
Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And Exteral | High Light: | fixed roof storage tank,municipal water storage tanks |
30 Years Service Life Industrial Water Tank for Industrial Water Treatment with Excellent Corrosion Resistance
Center Enamel industrial water tanks are available in a range of sizes and configurations, up to 20,000 cubic metre to suit commercial and industrial water tank installations. Consisting of glass fused to steel panels, Center Enamel's industrial water tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our industrial water tanks engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life.
By knowing our Glass-Fused-to-Steel Tank can store industrial water, you can easily understand that it has a wide range of applications within water and wastewater treatment projects. The stored media could be potable water, raw water, fresh water, river/well/lake water, RO water, fire water, irrigation water, rainwater, seawater desalination and food/soft drink process water etc.
Industrial Water Tank Specifications
Coating color | dark blue, dark green , white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet , around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Industrial Water Tank Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

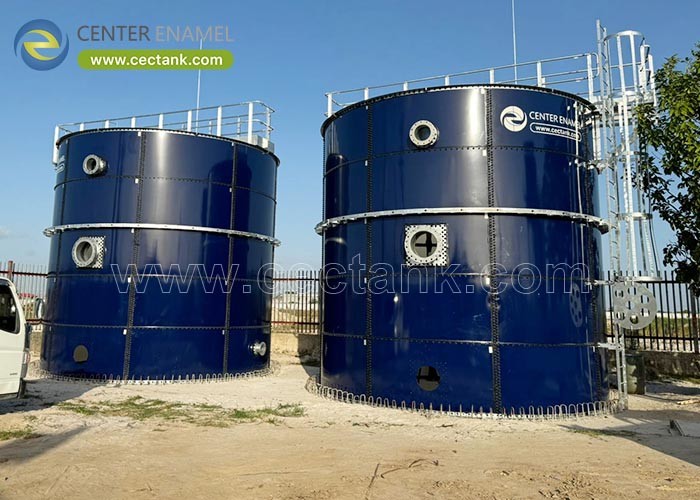

Industrial Water Tank Projects
