Glass Fused To Steel Liquid Storage Tanks With Aluminium Dome Roof

China Glass Fused To Steel Liquid Storage Tanks With Aluminium Dome Roof supplier
Glass Fused To Steel Liquid Storage Tanks With Aluminium Dome Roof supplier

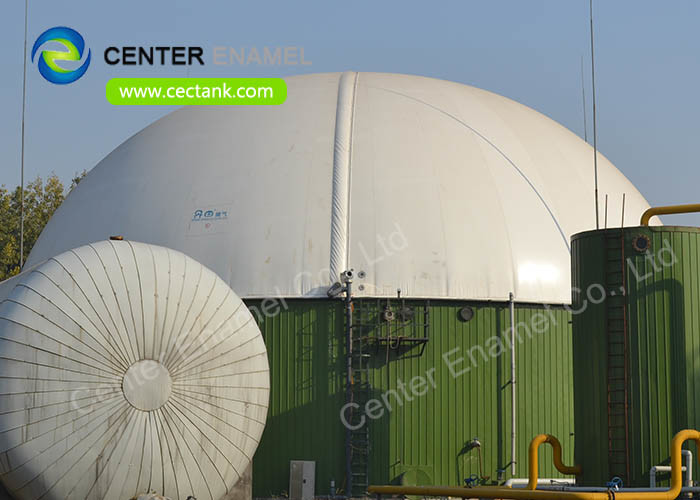

Large Image :  Glass Fused To Steel Liquid Storage Tanks With Aluminium Dome Roof

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Corrosion Integrity: Excellent Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure
Size Of Panel: 2.4M * 1.2M Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Feature: Eco-friendly, Durability Steel Grade: ART 310

Glass Fused To Steel Liquid Storage Tanks With Aluminium Dome Roof



Glass Fused To Steel Liquid Storage Tanks

Glass fused to steel liquid storage tanks are made of individual sections including Glass-Fused-to-Steel, roof, tank ancillaries. All the individual sections are manufactured and finished in the factory according to strict structural specifications, with quality bends, welds and surface processing. The bolt holes and openings will be cut by CNC laser cutting machine automatically. Spray the glass coating on both sides of steel panels automatically. Coating thickness is controlled within 230 microns to 450 microns. After enameling and drying, then firing steel panels in the oven at the temperatures ranging from 850℃ -940℃, which facilitates the interfacial fusion reactions that combine the two materials. That is what we call Glass-Fused-to-Steel. Unlike field welded tanks, field welded tanks must be installed on-site, often resulting in the imperfect and inconsistent finished coating, corrosion and other damage.



How is the production process of Glass-Fused-to-Steel?

Firstly preparing well all of the Ti-rich steel as drawing , and then cutting holes and corners as per drawing on our laser cutting machine ( CNC cutting machine ) , after all of the steel sheet be cut ,which need to get rid of the burs on the surface ,and then rolling job begins after all of the steel sheet is qualified , then we will spray the steel sheet and burn it in the oven with 800-950 degree last few minutes until the enamel is dry on the surface . When all of the finish of the job which not means the job is done, do some inspection on the surface the qualified one will send to the warehouse and pack. We pack it according to international export standard, EPE will be used on each steel sheet tied a few sheets together and put them into a wooden frame to avoid scratches during shipment.



Glass Fused To Steel Liquid Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds





Why Choice Our Glass Fused To Steel Liquid Storage Tanks

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API, and NFPA, etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture, etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.



Glass Fused To Steel Liquid Storage Tanks With Aluminium Dome Roof
