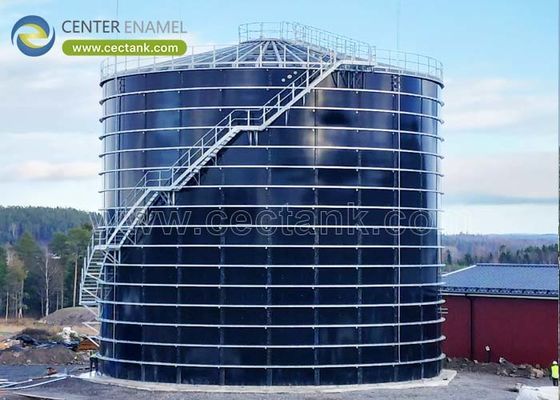

Glass Lined Steel Wastewater Storage Tank UASB Anaerobic Reactor

China Glass Lined Steel Wastewater Storage Tank UASB Anaerobic Reactor supplier
Glass Lined Steel Wastewater Storage Tank UASB Anaerobic Reactor supplier

Large Image :  Glass Lined Steel Wastewater Storage Tank UASB Anaerobic Reactor

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Corrosion Integrity: Excellent Feature: Eco-friendly, Durability
Tank Material: Glass Fused To Steel Foundation: Concrete Or Glass Fused Steel
Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure

glass lined steel wastewater storage tank UASB anaerobic reactor for waste water treatment



glass lined steel wastewater storage tank is a common wastewater treatment equipment in the field of wastewater treatment, also glass lined steel wastewater storage tank can be used as UASB anaerobic reactor for waste water treatment . There are many kinds of complicated corrosion forms in wastewater, such as acid-base corrosion, atmospheric corrosion, abrasion, penetration type expansion crack and microbial corrosion of bacteria and algae, which seriously affect the service life of wastewater treatment tank. Therefore, the wastewater treatment needs to use a excellent performance glass lined steel tanks to meet or exceed environmental standards.



Center Enamel provides a reliable, durable and high-quality wastewater storage solution.

Center Enamelglass lined steel wastewater storage tank is the best option for wastewater storage. Center Enamel's glass lined steel wastewater storage tank engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our GFS tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc.,



Glass Lined Steel Wastewater Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds



About us

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.



Project References
