4000000 Gallons Bolted Coated Steel Biogas Storage Tank For Bio - Energy Project

Certification
Good quality Waste Water Storage Tanks for sales
Good quality Waste Water Storage Tanks for sales
It is really a great pleasure to work with this company ,I can always get the solution timely and on budget

—— Micheal Jonson

Highly recommend this company ! I am a water and wastewater project contractor ,.I am so glad to find such a trustworthy tank supplier .

—— Martin Jäger

Good service ,very patient to help me find the best solution .I will buy more tanks from them in the near future .

—— William Koh

The GFS tank are very durable and very strong enough. The installation work are very simple and rapid for this work job. Overall, the GFS tank are highly recommend

—— HW Chua

I'm Online Chat Now

4000000 Gallons Bolted Coated Steel Biogas Storage Tank For Bio - Energy Project

China 4000000 Gallons Bolted Coated Steel Biogas Storage Tank For Bio - Energy Project supplier
4000000 Gallons Bolted Coated Steel Biogas Storage Tank For Bio - Energy Project supplier

Large Image :  4000000 Gallons Bolted Coated Steel Biogas Storage Tank For Bio - Energy Project

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Elastic: Same As Steel Sheet ,around 500KN /mm Capacity: 20 M³ To 20,000 M³
Tank Body Color: Dark Green / Can Be Customized Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External
Tank Material: Glass Fused To Steel Foundation: Concrete Or Glass Fused Steel

4000000 Gallons Bolted Coated Steel Biogas Storage Tank For bio-energy project



Center Enamel Co. Ltd is the largest manufacturer making factory bolted coated steel biogas storage tank in China since 1989 . It occupies more than 200 enamel frit formulas patents . From the enamel production to spray and burn steel plates , all manufacturing process is finished in our workshop . We have CNC cutting machine to pre cut holes ; we have shot blasting machine to pretreat raw steel plates ; we have electrostatic spraying line to spray and burn steel plates ..... We are the largest and most professional glass-fused-to-steel manufacturer in China .



Capacity available

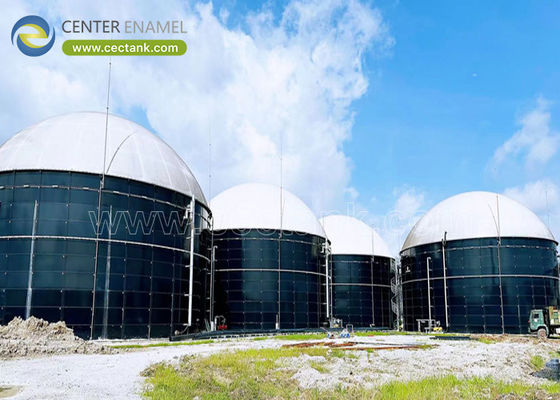

According to the specific technology process of a plant , Factory bolted coated steel biogas storage tank can be mounted with double membrane roof or fixed steel roof . Both above roofs are gas tight . The maximum capacity we are capable of providing for above gas tight biogas storage tank is 20,000m3



Bolted Coated Steel Biogas Storage Tank Specification



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds



About Center Enamel

Center Enamel Co., Ltd is not only the first and most experienced Glass-Fused-to-Steel Tanks manufacturer in China, but also the leading storage tanks manufacturer in Asia. Center Enamel storage tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC storage tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
