30000 Gallons Sewage Holding Tank Consist Of Glass Lined Steel Panels With Superior Storage Tank Performance

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Adhesion: 3,450N/cm
Service Life: ≥30 Years Steel Grade: ART 310
Size Of Panel: 2.4M * 1.2M Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14
High Light:

glass fused to steel water tanks

,

above ground fuel storage tanks

Product Description

30000 Gallons Sewage Holding Tank consist of glass lined steel panels with superior storage tank performance



Sewage holding tank also called a waste holding tank, is a container for storing sewage in vehicles equipped with toilets. Sewage Holding Tank consists of glass-lined steel panels with superior storage tank performance. The contents are emptied into a dump station, which discharges the raw sewage into a sewage treatment system. Center Enamel is dedicated to providing quality sewage holding tanks. We will strive to implement a long term and repeat relationship with our clientele, based on quality, safety, timely service and anticipation for their needs. We will provide a professional approach to constructing exceptional quality projects which meet budget and schedule goals.

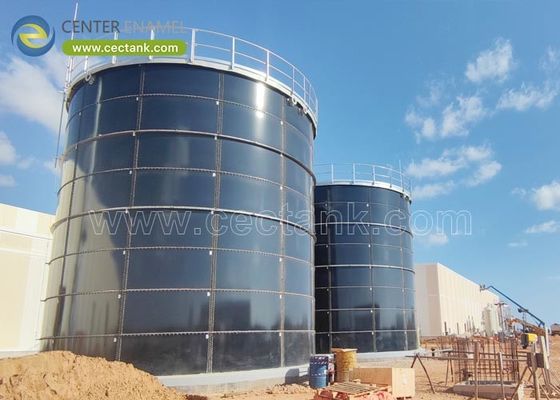

The glass fused steel tank is a bolted type. Factory fabricated steel panels are bolted together by high-grade bolts and sealed by silicone sealant . The glass fused steel tank is gas and liquid impermeable. When making the installation, it is usually assembled from top to bottom, which the top rings is firstly connected and then next ring .... till the bottom ring. Lifting systems like jacks or steel poles are used to lift the tanks which give access to workers to assembly the next rings.



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. Being one of the leaders in the glass fused to steel storage tank industry, we will strive to supply and erect the absolute best-bolted steel tank product available.



Glass-Fused-to-Steel Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds





About Center Enamel

Center Enamel Co., Ltd is not only the first and most experienced Glass-Fused-to-Steel Tanks manufacturer in China, but also the leading storage tanks manufacturer in Asia. Center Enamel storage tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC storage tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
