Glass Fused To Steel Biogas Storage Tank 36000 Gallons Corrosion Resistance

China Glass Fused To Steel Biogas Storage Tank 36000 Gallons Corrosion Resistance supplier
Glass Fused To Steel Biogas Storage Tank 36000 Gallons Corrosion Resistance supplier

Large Image :  Glass Fused To Steel Biogas Storage Tank 36000 Gallons Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Tank Material: Glass Fused To Steel Foundation: Concrete Or Glass Fused Steel
Steel Grade: ART 310 Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure
Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof

36000 Gallons Corrosion Resistance Glass Fused to Steel Biogas Storage Tank

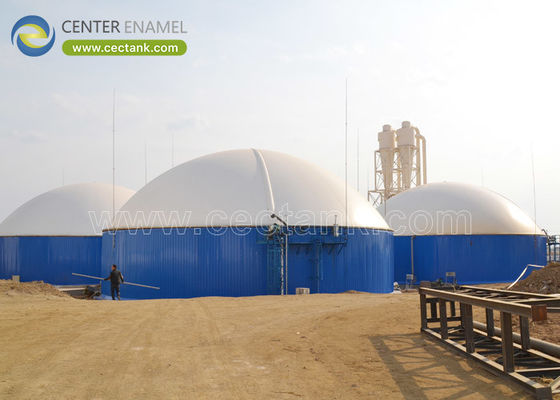

Glass Fused to Steel Biogas storage tank is also called biogas holder and is a kind of Anaerobic digestion tanks that are often cone-shaped and supported at the center with a single pole. Our biogas storage tank is made of Glass-Fused-to-Steel, so we also call it Glass-Fused-to-Steel biogas storage tanks. All the individual sections of biogas tanks are manufactured and finished in the factory according to strict structural specifications, with quality bends, welds and surface processing. The bolt holes and openings will be cut by CNC laser cutting machine automatically. Spray the glass coating on both sides of steel panels automatically. Coating thickness is controlled within 230 microns to 450 microns. After enameling and drying, then firing steel panels in the oven at the temperatures ranging from 850℃ -940℃, which facilitates the interfacial fusion reactions that combine the two materials. That is what we call Glass-Fused-to-Steel. Unlike field welded tanks, field welded tanks must be installed on-site, often resulting in imperfect and inconsistent finished coating, corrosion and other damage.



Glass Fused to Steel Biogas Storage Tank Specifications



Coating Color Standard dark green and blue or customized
Coating thickness 0.25-0.45mm
Acid and alkalinity proof Standard PH: 3~11, Special PH:1~14
Adhesion 3.450N/cm
Hardness 6.0 (Mohs)
Service life ≥30 Years
Holiday test >1500V
Permeability Gas liquid impermeable
Easy to clean Smooth, glossy, inert, anti-adhesion
Corrosion resistance Excellent, suitable for wastewater, salt water, sea water, high sulfur crude oil, salt fog organic and inorganic compounds





Comparation Of Storage Tanks



Item Concrete Tank Carbon steel tank

Enamel tank
( Glass fused to

Steel tanks )

LIPP tank
Beautiful degree Low Low High High
Temperature adaption A stress

Adapt to low

temperature

Adapt to low

temperature

Adapt to low

temperature

Shape Any shape Round shape Round shape Round shape
Ground Or underground Both Ground Both Ground
Corrosion resistance Normal

No resistance

to corrosion

Good Not
Abrasion resistance Good Bad Good Bad
Easy to clean Bad Bad Good Normal
Easy to repaire Normal Good Good Bad
Weight (T) heavy Little heavy light Little light
Tank cost middle high low low
Tank temperature protect no need need need
Anti-corrosive Treatment no need no need
Annual anticorrosive cost no High cost no High cost
Corrosion resistance normal no superior normal
Abrasion resistance good bad good bad
Service life ( years) 30 10 30 25





About Center Enamel



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
