Glass - Fused - To - Steel Bolted Tank As Anaerobic Digester Tank Easy To Clean

China Glass - Fused - To - Steel Bolted Tank As Anaerobic Digester Tank Easy To Clean supplier

Large Image :  Glass - Fused - To - Steel Bolted Tank As Anaerobic Digester Tank Easy To Clean

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Adhesion: 3,450N/cm
Service Life: ≥30 Years Steel Grade: ART 310
Size Of Panel: 2.4M * 1.2M Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14
Capactiy Available: 20 M3 To 20,000 M3 Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.
Easy To Cle: Smooth, Glossy, Inert, Anti-adhesion Warranty Period: 2 Years Free Of Charge
Defect Free: Minimum Maintenance Needed Impact Resistance: Excellent
Foundation: Concrete Or Glass Fused Steel Corrosion Resistan: Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds
Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals

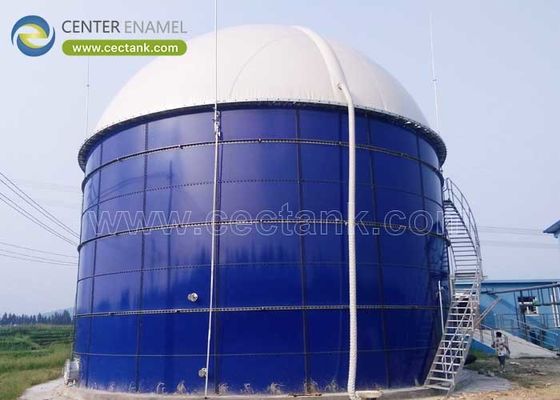

Glass-Fused-to-Steel Bolted Tank As Anaerobic Digester Tank





The general impression of veratrum Glass-Fused-to-Steel Bolted Tank



Glass-Fused-to-Steel Bolted Tank is a kind of factory fabrication tank, which made of glass coated on Ti-rich special steel plates. The steel plates are coated with enamel powder ( mixing with 10-20 different materials ) and burned in oven ( Temperature from 800 celsius to 950 celsius ) , which makes the steel sheet and glass coated greatly blend together .



For all of the holes on the tank, the wall will be precutted on the workshop , instead of on job site . Accoding to the size of hole , there will be some flanges nozzles along with. Except for the nozzle and flanges , we also supply roofs , we produce glass fused to steel roof and aluminum deck roof by ourselves. For the other accessories, like bolts, ladder, wind truss ect. we also can do it as the requirement of our customers.



About the installation , we can send supervisor or installation team to help installation . For the glass fused to steel tank there is no need big equipment during the installation , we will assemble the tank from the top ring , every ring we will use the jack to lift it , until the final ring is be installed . If there is a roof it will be installed with the top ring together .





Glass fused to steel tank specification



  • Color: Cobalt blue, dark blue, green , sky blue , or customized colors
  • Size : From 50m3-18000m3
  • Service Life: more than 30 years
  • PH range: Standard sheet PH:3-11 , Special sheet PH : 1-14
  • Holiday test : More than 1500V
  • Easy to clean : Smooth, glossy , inert , anti – adhesion
  • Corrosion resistance : Excellent ,suitable for wastewater , salt water , sea warer , high sulfur crude oil , salt fog , organic and inorganic compunds



Why choose Center Enamel Glass-Fused-to-Steel tanks:

- The first and most professional Glass-Fused-to-Steel tanks manufacturer in Asia

- Innovative enameling protection technology on sheet’s four edges and bolt holes

- Successful projects reference in more than 60 countries in the world

- Products conform to or exceed AWWA D103-09, OSHA and ISO/EN 28765

- Certified by ISO9001, NSF61, BSCI etc. international qualification system

- Cutting edge enameling technology to lead industry innovation

- Quick installation and lowest maintenance cost



As an outstanding containment system provider with more than 30 years of experience, Center Enamel Co, Ltd sincerely expects to establish long-term cooperation with the local partners throughout the world and make a continuous contribution to the development of the industry.



Glass-Fused-to-Steel Bolted Tank As Anaerobic Digester Tank
