Payment & Shipping Terms:
|Coating Thickness:||0.25mm~0.40mm , Two Layer Of Coating Internal And External||Adhesion:||3,450N/cm|
|Service Life:||≥30 Years||Steel Grade:||ART 310|
|Size Of Panel:||2.4M * 1.2M||Acid And Alkalinity Proof:||Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14|
|Capactiy Available:||20 M3 To 20,000 M3||Easy To Clean:||Smooth, Glossy, Inert, Anti-adhesion|
|Steel Plates Thickness:||3mm - 12mm , Depends On The Diameter & Height||Usage:||Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.|
|Easy To Cle:||Smooth, Glossy, Inert, Anti-adhesion||Warranty Period:||2 Years Free Of Charge|
|Defect Free:||Minimum Maintenance Needed||Impact Resistance:||Excellent|
|Foundation:||Concrete Or Glass Fused Steel||Installation:||By Jacking Machine Or Steel Pole, Fast In Installation|
|Corrosion Resistan:||Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds|

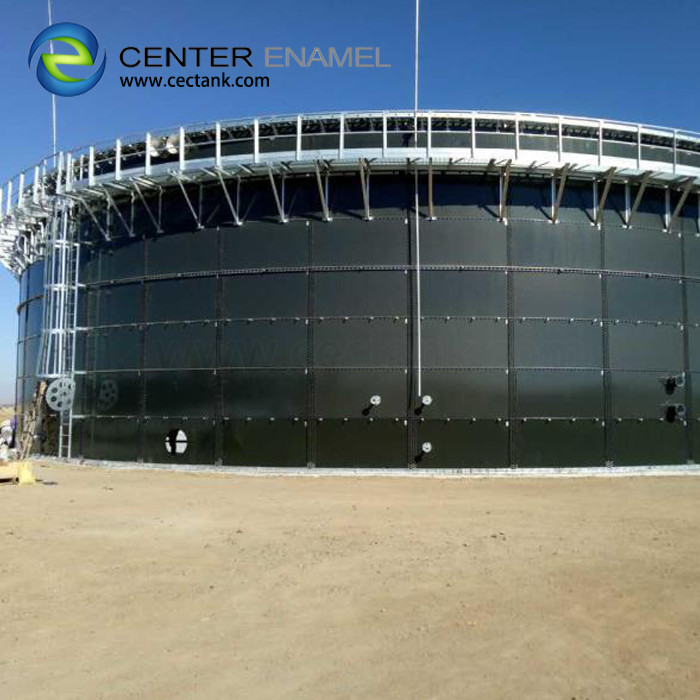

Glass Lined Liquid Storage Tank Comply With NSF61 Certification

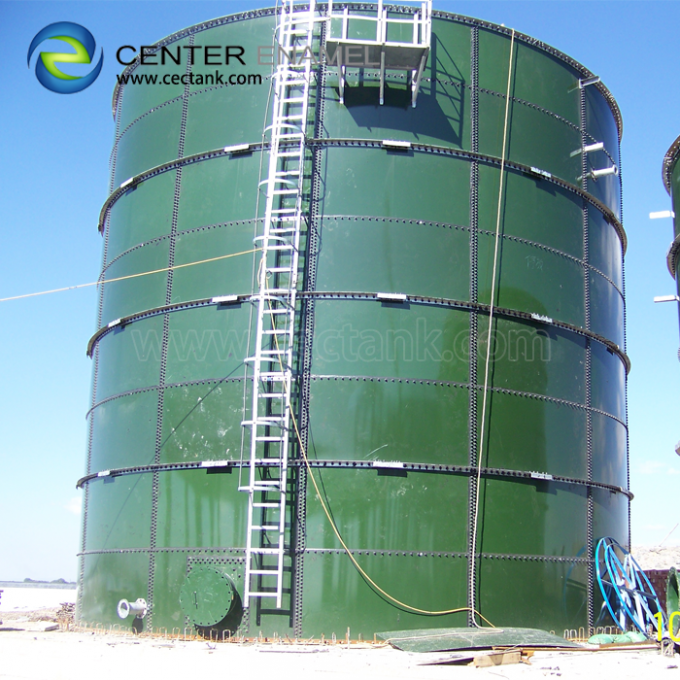

Glass Lined Liquid Storage Tank
The application of glass fused to steel tank is wide, which has advantages in storing potable water and industrial liquid applications .. Some common liquids include; water, liquid fertilizer, waste vegetable oil, agricultural chemicals, liquid feed, industrial chemicals and more. Our glass-lined liquid storage tank is made of Glass-Fused-to-Steel which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or weld painted storage tanks.
The physical properties of glass coating are especially used to municipal and industry applications , because the glass coatings form a hard , glossy , inorganic barriers for both interior and exterior tank wall resist of weather condition . The enamel frit burn-in temperature from 800 -950 degree , creating greatest and strongest bond between enamel coating and steel .
Center Enamel's glass-lined liquid storage tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our glass-lined liquid storage tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life.
Why choose Center Enamel Glass-Fused-to-Steel tanks:
- The first and most professional Glass-Fused-to-Steel tanks manufacturer in Asia
- Innovative enameling protection technology on sheet’s four edges and bolt holes
- Successful projects reference in more than 60 countries in the world
- Products conform to or exceed AWWA D103-09, OSHA and ISO/EN 28765
- Certified by ISO9001, NSF61, BSCI, etc. international qualification system
- Cutting edge enameling technology to lead industry innovation
- Quick installation and lowest maintenance cost
As an outstanding containment system provider with more than 30 years of experience, Center Enamel Co, Ltd sincerely expects to establish long-term cooperation with the local partners throughout the world and make a continuous contribution to the development of the industry.
Contact Person: Miss.Melody wong
Permeability: as and liquid impermeable
Acid and alkalinity proof: standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Usage: waste water treatment , sewage treatment, effluent treatment, ect.
Corrosion resistance: excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
