AWWA D103 / EN ISO28765 Standard Bolted Tank For Industrial Water Storage

China AWWA D103 / EN ISO28765 Standard Bolted Tank For Industrial Water Storage supplier

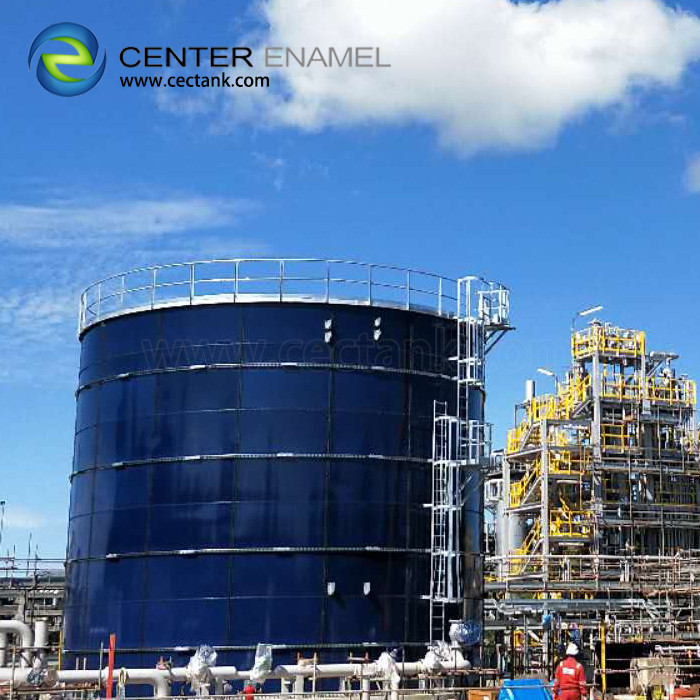

Large Image :  AWWA D103 / EN ISO28765 Standard Bolted Tank For Industrial Water Storage

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Adhesion: 3,450N/cm
Service Life: ≥30 Years Steel Grade: ART 310
Size Of Panel: 2.4M * 1.2M Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14
Capactiy Available: 20 M3 To 20,000 M3 Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.
Easy To Cle: Smooth, Glossy, Inert, Anti-adhesion Warranty Period: 2 Years Free Of Charge
Defect Free: Minimum Maintenance Needed Impact Resistance: Excellent

AWWA D103 / EN ISO28765 Standard Bolted Tanks for Industrial Water Storage





Center Enamel's bolted tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our bolted tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone, etc., to make sure the tank structure's adequate security in long-term service life.



Design Criterion



Design Code AWWA D103
Wind load 250 KM/h
Freeboard 300mm or as per request
Seismic Zone D
Fluid Temperature -5~ 77 Degree C.
PH Range 3 - 11
Specific Gravity 1.105
Edge Protection Yes, enameled edge
Vacuum -500PA( enamel roof), -200PA (membrane roof)
Operating temperature Ambient
Operating pressure Atmospheric
Bolts galvanized bolt with PP capped
Bottom connection Above ground (as per foundation drawings)
Tank color As customer’s request





Center Enamel Co., Ltd is the first and most experienced Glass-Fused-to-Steel bolted tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA, etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture, etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.



AWWA D103 / EN ISO28765 Standard Bolted Tanks for Industrial Water Storage
