Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Adhesion: | 3,450N/cm |
Service Life: | ≥30 Years | Steel Grade: | ART 310 |
Size Of Panel: | 2.4M * 1.2M | Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 |
Capactiy Available: | 20 M3 To 18,000 M3 | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height | Usage: | Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect. |
Easy To Cle: | Smooth, Glossy, Inert, Anti-adhesion | Warranty Period: | 2 Years Free Of Charge |
Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Defect Free: | Minimum Maintenance Needed |
High Light: | glass coated steel tanks,porcelain enamel glass lined tank |

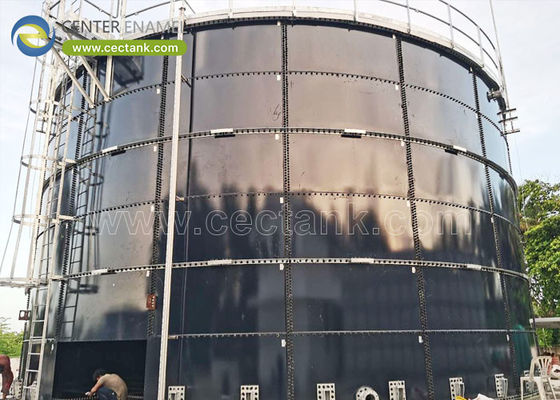

Excellent Abrasion Resistance Porcelain Enamel Tanks For Potable Water And Drinking Water Storage
There are many kinds of storage tanks such as Concrete Tank, Carbon Steel Tank, FRP Tank, etc. However, more and more customers prefer to choose porcelain enamel Tanks as their first solution for potable water and drinking water storage. Porcelain enamel tank is also known as Glass Fused to Steel tank, whose steel is finished where Glass and Steel are fused together to achieve the best of strength and flexibility of the steel combined with the superior corrosion resistance of the glass. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate, and industrial wastewater treatment, etc. applications
Center Enamel Co., Ltd is not only the first porcelain enamel Tank manufacturer and supplier in China but also the most experienced porcelain enamel tank manufacturer in all of Asia. Center Enamel porcelain enamel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel porcelain enamel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.
Why choose porcelain enamel tanks?
1. Short installation period: compare to more than 40days installation time for other type tanks, usually porcelain enamel tanks only need even less than 15days.
2. Superior corrosion resistance: porcelain enamel tanks can resist pH rage 1-14.
Beautiful appearance: The standard color is dark green, and color can be customized according to the customer’s request, to fit for the surrounding environment.
Climate adaptability: GLS tanks can be used in almost all kinds of weather conditions, which is very important for some special areas.
Long service life: more than 30 years’ service life also shows its excellent quality.
Easy construction: No need big installation equipment, and can be designed to easily expand, dismantle and move.
Essential Characteristics of porcelain enamel Tanks
--- Coating Color: Dark green color, and also can be customized;
--- Coating Thickness: 0.25~0.4mm, Double coating;
--- Acid and alkalinity proof: Standard pH 3~11, Special pH 1~14;
--- Adhesion : 3450 N/cm;
--- Elastic: Same as steel sheet, around 500kN/mm;
--- Hardness: 6.0 Mohs
--- Service Life: more than 30 years;
--- Holiday test: >1500V;
--- Permeability: Gas-liquid impermeability;
--- Easy to clean: Smooth, glossy, inert, anti-adhesion;
-- Corrosion resistance: Excellent, suitable for wastewater, salt water, salt fox, organic and inorganic compounds etc.
