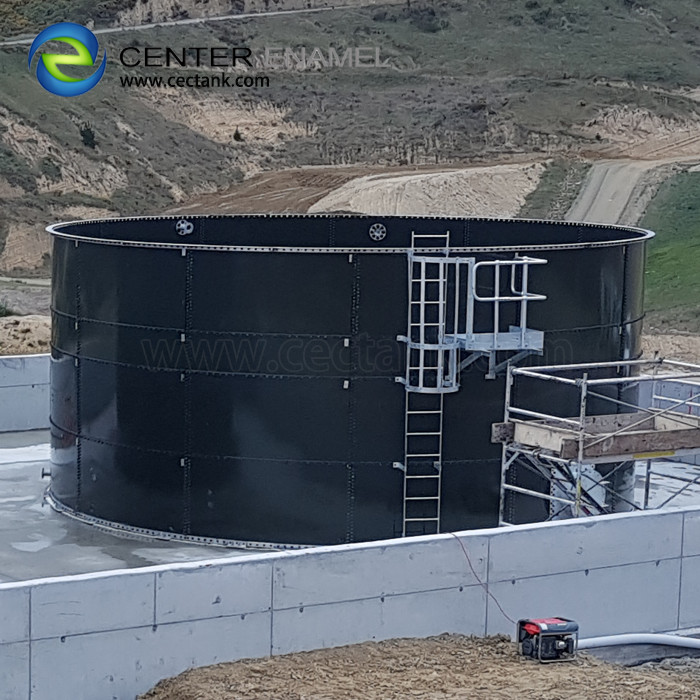

Vitrum Bolted Steel Liquid Storage Tanks With Aluminum Dome Roof

China Vitrum Bolted Steel Liquid Storage Tanks With Aluminum Dome Roof supplier

Large Image :  Vitrum Bolted Steel Liquid Storage Tanks With Aluminum Dome Roof

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Adhesion: 3,450N/cm
Service Life: ≥30 Years Steel Grade: ART 310
Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof Size Of Panel: 2.4M * 1.2M
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals
Capactiy Available: 20 M3 To 20,000 M3 Feature: Eco-friendly, Durability
Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height
Installation: By Jacking Machine Or Steel Pole, Fast In Installation Corrosion Integrity: Excellent

Vitrum Bolted Steel Liquid Storage Tank With Economic Aluminum Dome Roof





Introduction of Bolted Steel liquid storage tank

Our bolted steel liquid storage tank range the size from 20m3 to 20,000m3. It is the integration tank which sealed by high corrosion bolts and flexible sealant. Common uses for our Liquid Storage Tanks include the storage of fertilizer solutions, agricultural chemicals, water, liquid feeds and plant foods All of our tanks are rugged, corrosion-resistant and easy to install with no seams, welds or joints to leak or rust.



Center Enamel's bolted steel liquid storage tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our storage tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life.





What kinds of the roof can be selected?

Glass-Fused-to-Steel roof with external/internal beams

- air-tightness, GFS/enamel roof is suitable for anaerobic digestion condition
- cone shape roof with external/internal beams according to the requirement
- optimum material same as tank sidewall





Aluminum Alloy Trough Deck Roofs

- economic option for potable water, wastewater, and fire water storage etc.
- only protect from raining and wind, without air-tightness



Single and Double Membrane Roofs

- suitable for anaerobic digestion condition with biogas collection purpose
- integrated AD tank with the cover on top of tank, air-tightness



FRP Roofs

- suitable for no air-tightness required situation such as drinking water, agriculture, firewater, and wastewater storage
- the shape of the FRP roof can be a dome or flat

Aluminum Dome Roofs

- self-support without support columns
- without air-tightness





What is the advantages of bolted steel liquid storage tank?

Short construction period, cost-effective tank solution

Superior corrosion resistance, service life is more than 30 years

Easy to install, no need for big installation equipment and/or very skilled labors

Tank volume can be easily expanded

It can be dismantled, removed and relocated

Elegant appearance, tank color can be customized



Vitrum Bolted Steel Liquid Storage Tank With Economic Aluminum Dome Roof
