Vitrum Process Liquid Storage Tanks With Economic Aluminum Dome Roof
| Place of Origin: | CHINA |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20180508003 |
| Minimum Order Quantity: | 1 SET |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates;wooden pallets and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180508003 |
| Coating Color: | Dark Green, Or Customizing Colors | Coating Thickness: | 0.25~0.40mm, Double Coating |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Adhesion: | 3,450N/cm |
| Hardness: | 6.0 Mohs | Holiday Test: | >1500V |
| Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Capactiy Available: | 20 M3 To 20,000 M3 |
| Feature: | Eco-friendly, Durability | Foundation: | Concrete Or Glass Fused Steel |
| Defect Free: | Minimum Maintenance Needed | Usage: | Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect. |
| High Light: | liquid fertilizer storage tanks,crude oil storage tank |
||
Product Description

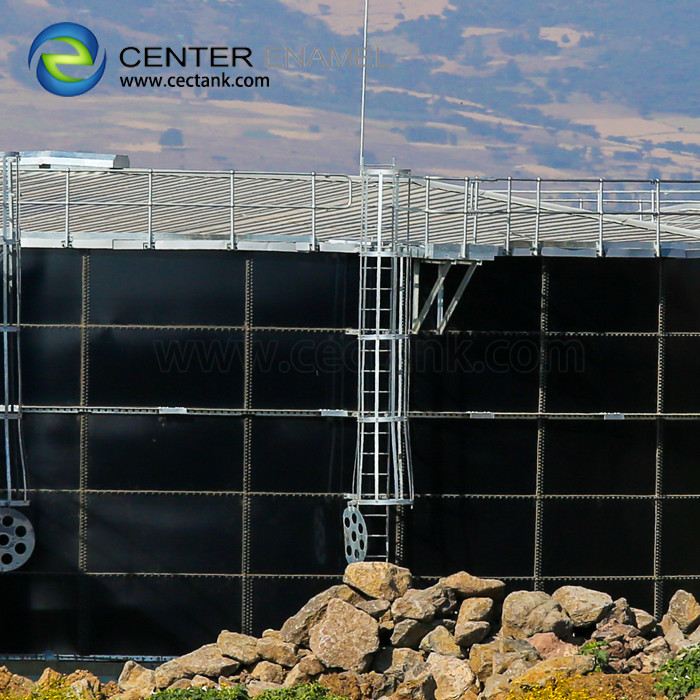

Vitrum Process Liquid Storage Tank With Economic Aluminum Dome Roof
Brief introduction of process liquid storage tank
Our Process Liquid Storage Tank range the size from 20m3 to 20,000m3. It is the integration tank which sealed by high corrosion bolts and flexible sealant. Common uses for our process liquid storage tank include the storage of fertilizer solutions, agricultural chemicals, water, liquid feeds and plant foods All of our tanks are rugged, corrosion-resistant and easy to install with no seams, welds or joints to leak or rust.
Now our process liquid storage tank that meats NSF61 certification to ensure the safety of drinking water, and also the design comply with AWWA D103 – 09, OSHA, Europe standards and Australia standards. We have the most advanced production line in China, which secure the quality and the quantity of our process liquid storage tank. All of our steel sheets is Ti-rich ATR 310 ( Enamel special steel sheet ) greatly improve the corrosion resistance and solve the fish scale of normal steel sheet. Meanwhile, the ATR 310 enamel special steel sheet which is our patent since 2005, working with one of the largest steel company “ Angang ” in china.
What kinds of the roof can be selected?
1. Glass fused steel material roof
2. Aluminum sloped deck roof
3. Glass reinforced the polyester roof
4. Single/double membrane roof
5. Aluminum geodesic dome roof
About Us
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
