6.0 Mohs Hardness Effective Biogas Holders For Anaerobic Digestion Plants

China 6.0 Mohs Hardness Effective Biogas Holders For Anaerobic Digestion Plants supplier

Large Image :  6.0 Mohs Hardness Effective Biogas Holders For Anaerobic Digestion Plants

Product Details:

Place of Origin: CHINA
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20180508003

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates;wooden pallets and wooden box
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Coating Color: Dark Green, Or Customizing Colors Coating Thickness: 0.25~0.40mm, Double Coating
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Adhesion: 3,450N/cm
Hardness: 6.0 Mohs Holiday Test: >1500V
Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion Capactiy Available: 20 M3 To 20,000 M3
Feature: Eco-friendly, Durability Foundation: Concrete Or Glass Fused Steel
Defect Free: Minimum Maintenance Needed

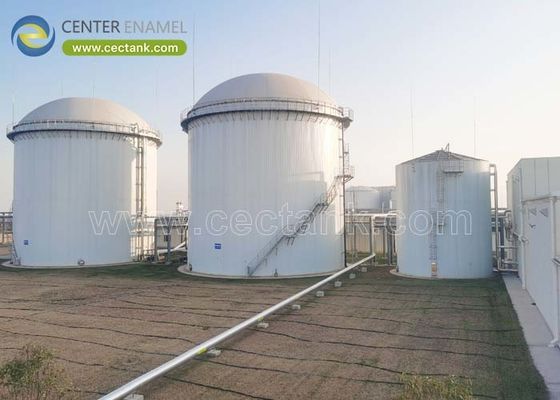

Low Cost and effective Biogas Holders for Anaerobic Digestion Plants



Center Enamel provides low cost and effective biogas holders for anaerobic digestion plants.

Every biogas plant has a gas holder in some form. Our biogas tank widely used as biogas holder to store biogas in a biogas plant. When it comes time to select a perfect tanks for biogas digester, biogas storage, anaerobic reactor, and aerobic reactor , the leaders in biogas systems turn to Shijiazhuang Zhengzhong Technology for their high performance glass fused to steel bolted tanks ( GFS tanks) as our anaerobic digester tank designs and coating system remain unmatched in the industry worldwide.





Technical Data



Category Specification
Coating Color dark green , white, blue , color can be customized upon your request
Coating Thickness 0.25 ~ 0.40mm , double coating
Acid and alkalinity proof Standard sheet PH : 3 ~ 11
Special sheet PH : 1 ~ 14
Adhesion 3450 N / cm
Elastic Same as steel sheet ,around 500 Kn / mm
Hardness 6.0 ( Mohs )
Service life ≥ 30Years
Holiday test > 1500v
Permeability Gas / liquid impermeable
Easy to clean Smooth , glossy , inert , non adhesive
Corrosion resistance

Excellent.

The GFS tanks are suitable for waste water treatment ,

sewage treatment , effluent treatment ., salt water , sea water ,

high-sulfur crude oil , salt fox ,organic and inorganic compounds.




The advantages of our glass fused to steel tanks for biogas storage :



1. Easy Installation : The tanks are assembled by glass fused to steel sheet, special sealant , self - locking bolts. It's very easy to bolt the tanks without big equipment is needed.

2. Short installation period: It only takes about 7 - 10 days for the installation while other traditional tanks takes about 2 or 3 month.

3. No subject to weather condition and environment condition : Superior corrosion resistance and abrasion resistance makes our glass lined steel tanks can be installed and used in villainous weather and harsh environment.

4. Excellent proof: The tanks are impermeable to gas and liquid , so it's perfect to be used for the biogas storage and water treament.

5. Low project cost : The modular system allows the tanks to be remodeled , expanded , dismantle , removed easily. Moreover, the tanks' service life is more then 30 years and among the service life , no need often maintainance, which ensure the most cost-effective investmen.

6. Beautiful appearance : different color can be customized as you want.

7. Flexible capacity from 20 m3 - 20000 m3.



Summary advantages of the GFS tanks when compare to other traditional tanks



Item Concrete Tank Carbon steel tank


Glass fused

to Steel tanks

LIPP tank
Beautiful degree Low Low High High

Temperature

adaption

A stress

Adapt to low

temperature

Adapt to low

temperature

Adapt to low

temperature

Shape Any shape Round shape Round shape Round shape

Ground Or

underground

Both Ground Both Ground
Corrosion resistance Normal

No resistance

to corrosion

Good Not
Abrasion resistance Good Bad Good Bad
Easy to clean Bad Bad Good Normal
Easy to repair Normal Good Good Bad
Weight (T) heavy Little heavy light Little light
Tank cost middle high low low

Tank temperature

protect

no need need need

Anti-corrosive

Treatment

no need no need

Annual anti-corrosive

cost

no High cost no High cost
Corrosion resistance normal no superior normal
Abrasion resistance good bad good bad
Service life 30 10 30 25



Low Cost and effective Biogas Holders for Anaerobic Digestion Plants
