Place of Origin: | CHINA |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20180508003 |
Minimum Order Quantity: | 1 SET |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates;wooden pallets and wooden box |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | CHINA | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180508003 |
Coating Color: | Dark Green, Or Customizing Colors | Coating Thickness: | 0.25~0.40mm, Double Coating |
Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Adhesion: | 3,450N/cm |
Hardness: | 6.0 Mohs | Holiday Test: | >1500V |
Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
Permeability: | Gas / Liquid Impermeable | Foundation: | Concrete Or Glass Fused Steel |
Steel Grade: | ART 310 | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
High Light: | 50000 gallon water storage tanks,steel potable water storage tanks |

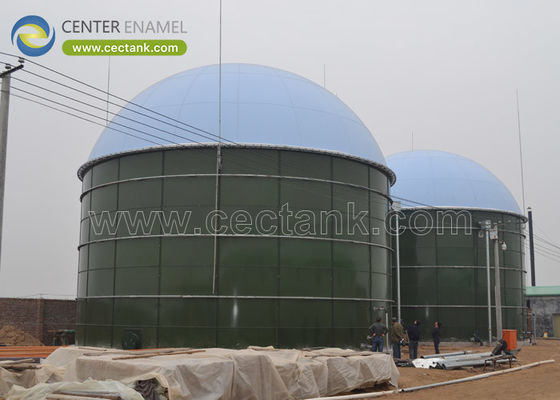

High Corrosion Resistant Sludge Digester Tank For Wastewater Treatment Plant
Product introduction
High corrosion-resistant sludge digester tank with over 30 years lifespan is called glass fused steel tank,
which consists of Glass-Fused-to-Steel, special sealant, self-locking bolts. The glass fused steel tank is bolted type. Factory fabricated steel panels are bolted together by high-grade bolts and sealed by silicone sealant. The glass fused steel tank is gas and liquid impermeable. When making the installation, it is usually assembled from top to bottom, which the top rings is firstly connected and then next ring... Till the bottom ring. Lifting system like jacks or steel poles is used to lift the tanks which give access to workers to assembly the next rings. The high corrosion resistance sludge digester tank is widely used in the wastewater treatment plant.
We can provide glass fused steel floor too. In most cases, a concrete foundation is applied and the tank
wall is connected with the concrete floor. You don’t have to worry about the leakage of the foundation because
we have built hundreds of such tanks.
What are our competitive advantages?
Center Enamel Co., Ltd (Shijiazhuang Zhengzhong Technology Co., Ltd) is a professional manufacturer dedicated to the design and fabrication of Glass-Fused-to-Steel tanks since 1989. Center Enamel Co., Ltd has become the GFS tanks industry leader in Asia and is certified to ISO9001, NSF61, LFGB, BSCI, and other international standards. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.
Why choose Center Enamel Glass-Fused-to-Steel tanks:
- The first and most professional Glass-Fused-to-Steel tanks manufacturer in Asia
- Innovative enameling protection technology on sheet’s four edges and bolt holes
- Successful projects reference in more than 45 countries in the world
- Products conform to or exceed AWWA D103-09, OSHA and ISO/EN 28765
- Certified by ISO9001, NSF61, BSCI, etc. international qualification system
- Cutting edge enameling technology to lead industry innovation
- Quick installation and lowest maintenance cost
Application fields :
Power and Energy | Water supply and Treatment | Wastewater Treatment | Industrial dry bulk storage |
Biogas biomass | Potable water | Buffer Pool | Mineral |
Aviation oil | Bitter-brackish water | Aerobic Reactor | Wood product |
Process water | Raw water/Freshwater | Biological Filter | Stone/Clay/Glass |
Boiler Feedwater | Aeration | Effluent Treatment | Chemicals |
Fuel Oil | Biological Filter | Regulating Tank | Petrochemicals |
Kerosene | Water Purifying | Anaerobic reactor | Foods |
DI water | Fire-fighting water | Leachate Storage | Plasthetics |
Coal Storage | Saline Water/Brine Water | Irrigation water | Grain / Seeds |
Diesel | Sedimentation Container | Water Purifying | |
Drilling mud | Ro Water | Sedimentation Container | |
Reverse osmosis water | Sea water desalinization | Sludge Tank | |
Fly ash silo | Lime Silo | Animal Wastes | |
Clarification Pool |
