Center Enamel is the First Glass Lined Liquid Storage Tanks Hardness 6.0 Mohs
| Place of Origin: | CHINA |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20180508003 |
| Minimum Order Quantity: | 1 SET |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates;wooden pallets and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | CHINA | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180508003 |
| Coating Color: | Dark Green, Or Customizing Colors | Coating Thickness: | 0.25~0.40mm, Double Coating |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Adhesion: | 3,450N/cm |
| Hardness: | 6.0 Mohs | Holiday Test: | >1500V |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
| Permeability: | Gas / Liquid Impermeable | Foundation: | Concrete Or Glass Fused Steel |
| Steel Grade: | ART 310 | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
| Impact Resistance: | Excellent | Capactiy Available: | 20 M3 To 20,000 M3 |
| High Light: | liquid fertilizer storage tanks,chemical storage tank |
||
Product Description

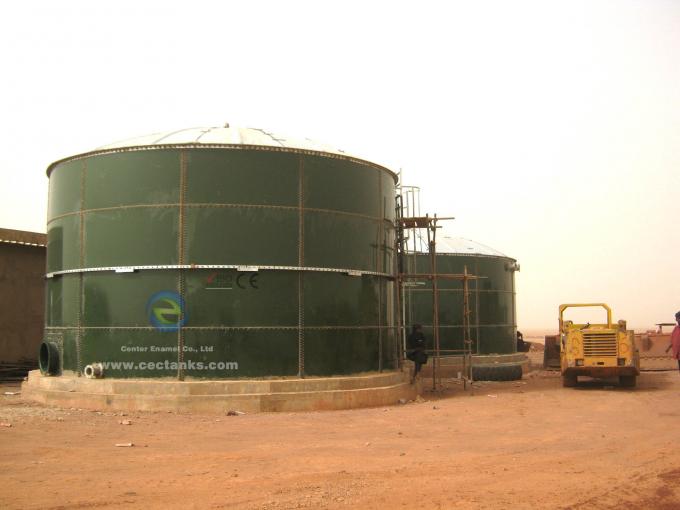

Center Enamel is the First Glass Lined Liquid Storage Tanks Manufacturer in China
Center Enamel has over 30 years' experience in glass lined liquid storage tanks design, manufacture, and installation and is the China leader of large liquid tanks. All our glass lined liquid storage tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, which extend our tanks range to meet all your storage needs.
Glass-Fused-to-Steel (GFS), also known as Glass-Lined-Steel (GLS), is the ultimate tank solution utilizing a proven product with significant advantages.
What is Glass-Fused-to-Steel?
Glass-Fused-to-Steel (Glass-Lined-Steel) is a unique tank finish. The two materials are fused together to achieve the best properties of both – the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Glass-Fused-to-Steel is able to provide many years of trouble-free service in harsh environments.
This system has been proven over many decades on thousands of installations and is supported by international standards which cover the design and finish requirements, such as:
EN ISO 28765:2011, EEA 7.20, EEA 7,24, EEA 7.25, ANSI / AWWA D103-09, BS 5502, and
NRCS.
glass lined liquid storage tanks provide the following benefits:
Long life
Low capital cost
Low maintenance costs
Rapid installation
Ease of transport to site
Flexibility to extend, dismantle and relocate
