|Coating Thickness:||0.25mm~0.40mm & Double Coating||Adhesion:||3,450N/cm|
|Hardness:||6.0Mohs||Service Life:||≥30 Years|
|Permeability:||Gas / Liquid Impermeable||Tank Body Color:||Dark Green / Can Be Customized|
|Tank Material:||Glass Fused To Steel|

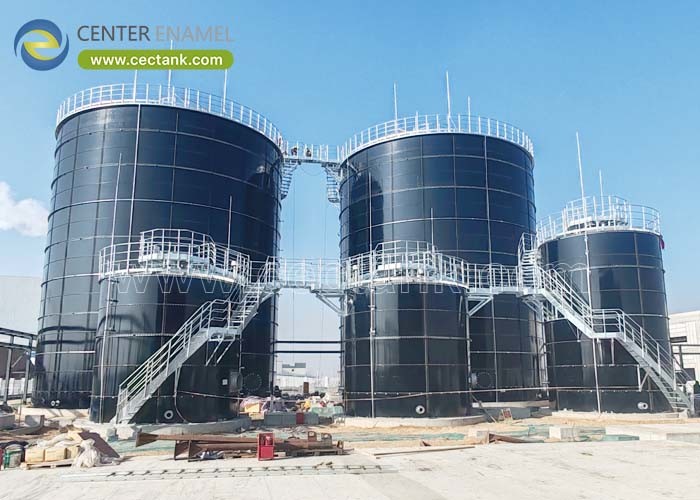

Landfill Leachate Tanks Factory Fabricated Tanks with Superior Corrosion Resistance Performance
When it comes to landfill leachate storage , Center Enamel recommends you choose the factory fabricated glass fused steel tank . As we all know, landfill leachate could be very corrosive. So the utmost specification of the tank has to be superior corrosion resistance, which is right one of the most outstanding characteristics of glass fused steel tanks .
Two materials - Enamel frit and raw steel are fused together after two coating and two heat treatment at 800-900℃ to achieve the best cohesion blending of the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Center Enamel’s Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments.
|Coating color||Standard dark blue or dark green; customized colors are available|
|A standard steel plate size||effective size 2400mm x 1200 m|
|Steel plates thickness||3mm - 12mm , depends on the diameter & height|
|Coating thickness||0.25mm - 0.45mm, two coating internal and external|
|Acid and alkalinity proof||standard coating suits for PH 4 - PH11, special coating suits for PH 1 - PH 14|
|Elastic||same as steel sheet , around 500KN/mm|
|Service life||>30 years|
|Spark test||>1500 V|
|Permeability||gas and liquid impermeable|
|Easy yo clean||smooth, glossy, inert, anti-adhesion|
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
Why glass lined steel material for Leachate storage tank ?
1.Short Construction Period: compare to over 90 days construction time of concrete tank, it takes even less than 15 days for installation of glass lined steel biogas storage tanks.
2.Superior Corrosion Resistance: Center Enamel Biogas Storage Tanks can resist PH range of 1 - 14.
3.Long Service Life: Center Enamel Biogas Storage Tank are designed to work in a long service life as more than 30 years.
4.Tank Volume can be easily expand: Center Enamel Biogas Storage Tanks are not only easy to construct, but also convenient to expand, remove and rebuild.
5.Beautiful Appearance: the color of glass steel tank could be customized as per client’s request based on Pantone Matching System.
Various Application of Factory Fabricated Glass Fused Steel Tank
Except for licheate storage, glass fused steel tank is wide used in below applications :
|Agriculture||irrigation water storage tank , dairy farm effluent storage tank , manure storage tank ,|
|Fire protection system||fire water storage tank|
|Water supply and treatment||
raw water storage tank , river/well/rain water storage tank , treated water storage tank , clear water storage tank , sedimentation tank , sea water tank ,
Waste water treatment : sedimentation tank , equalization tank , regulation tank , sludge holding tank , leachate storage tank , effluent treatment tank , aerobic reactor , anaerobic reactor , buffer hydrolysis tank , ect.
|Municipal and industrial waste water treatment||sedimentation tank , equalization tank , regulation tank , sludge holding tank , leachate storage tank , effluent treatment tank , aerobic reactor , anaerobic reactor , buffer hydrolysis tank , ect.|
|Biogas plant||various anaerobic digester and various aerobic reactor , such as SBR , CSTR , USR , EGSB , UASB , ect.|
|Others||Palm oil storage , molasses storage|
