Anti - Adhesion Biogas Storage Tank With Membrane Gas Holder / Waste Water Treatment Tank

China Anti - Adhesion Biogas Storage Tank With Membrane Gas Holder / Waste Water Treatment Tank supplier

Large Image :  Anti - Adhesion Biogas Storage Tank With Membrane Gas Holder / Waste Water Treatment Tank

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Adhesion: 3,450N/cm
Hardness: 6.0Mohs Service Life: ≥30 Years
Holiday Test: >1500v Permeability: Gas / Liquid Impermeable
Capacity: 20 M³ To 18,000 M³ Tank Material: Glass Fused To Steel
Size Of Panel: 2.4M * 1.2M

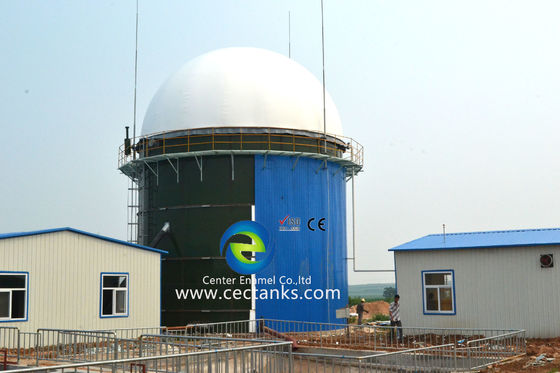

Biogas Digestion Enamel Steel Tank Mounting with Membrane Gas Holder













Biogas digestion tank we are providing is enamel coated bolted steel tank mounted with double layer membrane holder roof . The outer layer of membrane roof works as the protection for the inner membrane . The outer membrane is more strong and coated with UV resistance coating . By working of air blower, the outer membrane forms a hemispheric balloon thus keep the roof in shape . The inner layer of membrane roof is more gas-tight . The biogas generated by the underneath digester will be temporarily stored at the space formed by the digester and the inner membrane . So this is so-called inter-grated biogas digester - biogas digestion and biogas storage are realized by this same unit .

The membranes are highly tear resistant polyester fabrics with a special PVC surface treatment and acrylate varnish. The fabric is also resistant to the impact of the different biogas ingredients and the white colour of its external membrane has a highly reflective effect. The construction and dimensions of the double membrane biogas storage tank comply with all relevant standards.

· Biogas storage system fabric is highly flame-poof according to DIN 4102-B1

· Higher specification fabric is available on request

· The special surface treatment formula guarantees high resistance against permeability & UV

· All biogas storage tanks are resistant to wind and heavy snow and guarantee safe operation

· The temperature resistance ranges from –30°C to +60°C

Anti - Adhesion Biogas Storage Tank With Membrane Gas Holder / Waste Water Treatment Tank

Enamel Coated Bolted Steel Tank Panels Manufacturing Process



1. CAD Design: all the tanks are designed as per client’s request by CAD - work stations

2. Laser Cutting: Center Enamel adopts most advanced 3500W laser cutting machine to meet the best cutting performance

3. Shot Blasting: Comparing chemical processing, our advanced physical Shot Blasting ensure quality of each sheet

4. Rolling: according the different request and dimension

5. Pre - treatment: Each sheet will be pre - treated before enameling

6. Enameling: using automatic production line to enamel all panels

7. Firing: The temperature of firing oven is 850 degrees Celsius

8. Test: Center Enamel tests every sheet with 1500V holidays test and other tests

9. Packing: All the glass fused to steel sheets are packed in wooden boxes



Quick details of characteristics



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 mm
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Spark test gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent  Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds



Enamel Coated Steel Tanks’ Wide Application not limited to biogas digestion tank



Except for using as biogas storage tank , glass lined steel tank is wide used in below applications :



1. Water supply and waste water Treatment :



The nature of impermeable of gas and liquid makes the glass fused to steel tank suitable for water supply and treatment , such as portable water , waste water treatment , sewage treatment , RO water and so on.



2. Power and Energy



The glass fused to steel tank can be used in the most extreme conditions makes it suitable for power and energy industry, such as Biogas biomass , Aviation oil , Process water, Boiler Feedwater , Fuel Oil , Kerosene , DI water, Coal Storage , Diesel , Drilling mud , Reverse osmosis water, Fly ash silo.



3. Industrial dry bulk storage



With long-life span and low maintain cost , it can be suitable for storage such as Mineral , Wood product , Stone / Clay / Glass, Chemicals , Petrochemicals , Foods , Plasthetics , Grain / Seeds for a long time.
