Glass Lined Steel Digesters And Reactors For Environmental Industrial
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20180103005 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180103005 |
| Adhesion: | 3,450N/cm | Hardness: | 6.0Mohs |
| Holiday Test: | >1500v | Permeability: | Gas / Liquid Impermeable |
| Tank Material: | Glass Fused To Steel | Steel Grade: | ART 310 |
| High Light: | glass fused to steel water tanks,above ground fuel storage tanks |
||
Product Description

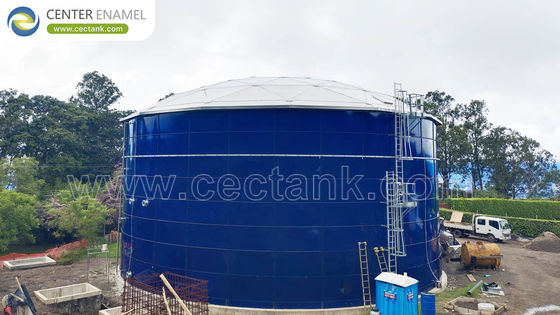

Glass Lined Steel Digesters And Reactors For Various Environmental Industrial
Center Enamel’s glass lined steel tank is designed to service a wide range of applications like water treatment , municipal and industrial waste water treatment , land filling plant, biogas plant , fire and rescue system , dairy effluent treatment, sewage and slurry treatment , ect. Center Enamel Co. Ltd delivers tailored tank proposals which are suitable for all types of storage or digester system.
Glass lined steel tanks represent the very latest developments in steel tank coating technology. This has provided significant engineering and cost benefits to users across a range of applications since the early 2000s.
The benefits of glass lined steel tanks against more traditional tank coatings include higher durability to impact, lower cost manufacturing, lower carbon footprint and more efficient design principles.
The glass lining is coated to steel plates in high temperature furnace i.e. Spraying and firing process. Before the spraying and firing process , the plates are properly pre-treatment : CNC cutting , shot-blasting , curving , ect . it forms very strong adhesion strength between the coating and the steel plate. The protective coat can prevent corrosion, can withstand strong acid and alkali. It is superior in corrosion resistant .
Center Enamel Co. Ltd ‘s glass lined steel tank meets or exceeds the following internationally comparable requirements:
ISO9001:2008
EEA 7.20
AWWA D-103/9
ANSI/ NSF-61
BSCI
FDA
| Category | Specification |
| Coating Color | dark green, white, blue, color can be customized upon your request |
| Coating Thickness | 0.25 - 0.40mm , double coating |
| Acid and alkalinity proof | Standard sheet PH: 3 - 11 |
| Special sheet PH: 1 - 14 | |
| Adhesion | 3450 N / cm |
| Elastic | Same as steel sheet, around 500 Kn / mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥ 30 Years |
| Holiday test | > 1500 V |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Smooth, glossy, inert, non adhesive |
| Corrosion resistance |
Excellent. suitable for waste water treatment, sewage treatment, effluent treatment |
