Industrial Water Tanks for Storing Potable and Non-Potable Water , Waste Water and Lechate Runoff

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20171016007
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20171016007
High Light:

commercial water storage tanks

,

municipal water storage tanks

Product Description

Industrial Water Tanks for Storing Potable and Non-Potable Water, Waste Water and Lechate Runoff





What is Bolted Steel Tanks?

Glass-Fused-to-Steel (GFS), also known as Glass-Lined-Steel (GLS) and Bolted Steel Tanks, these names all means the same thing. that the tank panels are fused inside and out with a glass enamel that binds to the metal providing many advantages over standard epoxy coated or welded painted storage tanks.



Specification:

Category Specification
Coating Color Dark green, or Customizing colors
Coating Thickness 0.25~0.40mm, double coating
Acid and alkalinity proof Standard pH: 3~11, Special pH: 1~14
Adhesion 3,450N/cm
Elastic Same as steel sheet, around 500kN/mm
Hardness 6.0 Mohs
Service life ≥30 Years
Holiday test >1500V
Permeability Gas liquid impermeable



The coatings applications system offers improved tank durability, longer life-cycle of the tank, better corrosion resistance and finish thickness are improved. We design and manufacture to national and international standards.



GFS Tank Advantages :

- Short construction period, low project cost;

- Superior corrosion resistance, service life is more than 30 years;

- Convenient installation, easy construction, good quality;

- Tank volume is easily expanded;

- Beautiful appearance, color can be customized;

- Not subject to weather conditions;

- No need big installation equipment;

- Easily expand, dismantle, move;



General Industries provides a full line of water tanks for storing potable and non-potable water, waste water and lechate runoff. Our tanks are used for fire suppression systems, community water systems and rainwater harvesting systems. We also offer ASME hydropneumatic tanks for potable water for both aboveground and underground installations.



Design criterion & certificates: :

OSHA, EN28765, NSF/ANSI 61, ISO9001, FDA, AWWA-D103-09

Fabricated Per AWWA and NSF61 Standards • Potable water tanks for drinking water systems, industrial applications and fire suppression systems • Non potable applications include leacheate tanks, waste water collection and rain water harvesting.



Application Fields including:

Power and energy

Biogas biomass Fuel oil Diesel

Aviation oil Kerosene Drilling mud

Process water DI water Reverse osmosis water

Boiler feedwater Coal storage Fly ash silo



Water supply and treatment

Potable water Water purifying tank RO water

Bitter-brackish water Disinfecting water Sea water Desalinization

Raw water / fresh water Fire-fighting water Lime silo

Irrigation water Saline water / brine water Clarification pool

Biological filter Sedimentation container Aeration tank



Wastewater treatment

Buffer pool Regulation tank Water purifying tank

Aerobic reactor Anaerobic reactor Sedimentation container

Biological filter Leachate storage Sludge tank

Effluent treatment Irrigation water Animal wastes



Industrial dry bulk storage

Mineral Chemicals Foods

Wood product Petrochemicals Plasthetics

Stone / clay / glass Mining Industry Grain / seeds







Who we are?

Center Enamel Co., Ltd has been manufacturing and installing a complete line of bolted steel tanks and enamel storage tanks for the potable water, wastewater, fire protection, rain harvesting and bio energy digester Industries since 1989.





CEC Advantages:

  • R&D Ability

With nearly 30 years experience in enameling industry, Center Enamel Co.,Ltd has become the largest and most professional enamel tank manufacturer in China.

We already established a professional R&D team and advanced laboratory. With this strong enameling R&D ability, we can meet various demands of customers.



  • Advanced Production Line - CNC & Automatic production machine



  • Quality Control
  1. Raw Material Test.
  2. Enamel Sample Test
  3. Destructive Test
  4. Acid and Alkali Resistance Test
  5. 1500V Holiday Test
  6. Adherence Test
  7. Enamel Thickness Test

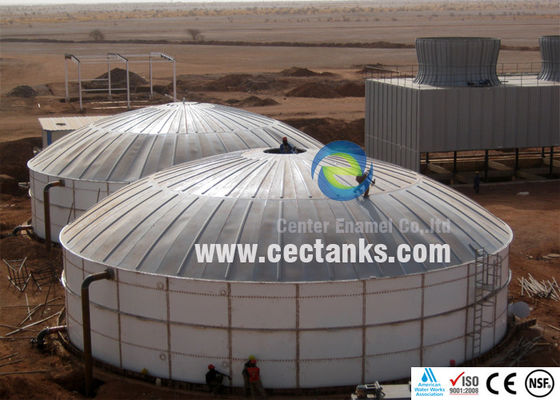

Project reference
