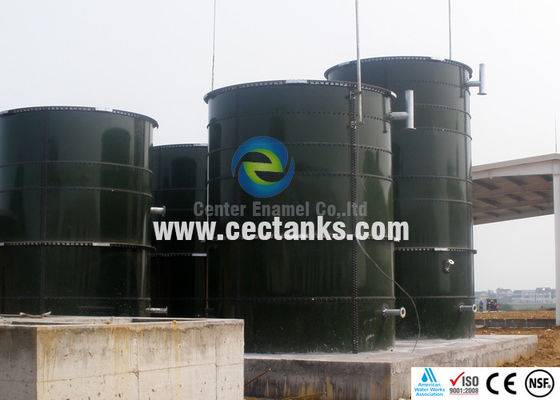

Glass Fused To Steel Water Treatment Tank

China Glass Fused To Steel Water Treatment Tank supplier
Glass Fused To Steel Water Treatment Tank supplier Glass Fused To Steel Water Treatment Tank supplier Glass Fused To Steel Water Treatment Tank supplier

Large Image :  Glass Fused To Steel Water Treatment Tank

Product Details:

Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20160126002

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Weather Extremes: Excellent Chemical Resistance: Excellent
Dismantle: Yes Freight Cost: Low
Size Change: Yes Erection Expense: Low
Defect Free: No Repairs .required Process: 2-Coat, 2- Fire
Appearance: Beautiful Construction Time: <15 Days
Installation Technology Requirement: Easy A High Abrasion Resistance: A Small Built-up Area
Roof: Variability In Roofs Design

Glass Fused To Steel Tanks Used as Waste Water Storage Tanks for Brewery





Specification

 Product    Glass Fused Steel tanks / Glass Lined Tanks / Enamel Coating Tanks
 Coating color   Dark green /can be customized
 Coating thickness

 0.25mm~0.40mm   Double coating

 Adhesion   3,450N/cm
 Hardness   6.0Mohs
 Elastic

  Same as steel sheet ,around 500KN /mm

 Holiday test   >1500v
 Permeability   Gas and liquid impermeable
 environmental impact   Eco-friendly
 Acid and alkalinity proof

  Standard sheet  PH:3~11

  Special   sheet  PH: 1~14
 Corrosion resistance

  Excellent , suitable for wastewater , salt water , sea water , high-sulfur crude

  oil , salt fox , organic and inorganic compounds
 Service life   ≥30 years



Case study

1)   Brewery wastewater treatment Cambodia Phnom Penh

Daily waste water treatment :1000T

1set of UASB tank Ø8.4*16.8 m

1 set of contact oxidation tank Ø 10.70*4.8m

2 sets of adjusting tank Ø9.93*4.8m

1 set of secondary sedimentation tank Ø 7.64*4.8m



2)   Brewery wastewater treatment project in China

2 sets of SBR reactor Ø17.57 *4.8m

2 sets of UASB reactor Ø13.75*6m



3)   Brewery wastewater treatment project in China

2 sets of EGSB reactor Ø5.35*16.8m



Advantages of glass fused to steel tank

  •  Short construction times
  •  Tank volume can be expanded
  •  Superior corrosion resistance
  •  Easy to be shipped, relocated, dismantled
  •  No need crane or other large equipment for erection
  •  Beautiful appearance
  •  low project cost
  •  light in weight ,it will not cost a lot for sea freight



From design to installation

Glass Fused To Steel Water Treatment Tank
