Above ground storage tanks

Above ground storage tanks
Above ground storage tanks
video play

Large Image :  Above ground storage tanks

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012320
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 7,000 USD - 20,000 USD
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Elastic: Same As Steel Sheet , Around 500KN/mm
Coating Thickness: 4.0.25mm - 0.4mm, Two Coating Internal And External Permeability: Gas And Liquid Impermeable
Steel Plates Thickness: 3mm - 12mm , Depends On The Diameter & Height Hardness: 6.0 ( Mohs )
Adhesion: 3,450 N/cm
High Light:

fixed roof storage tank

,

municipal water storage tanks

Expandable Industrial Water Tanks For Sewage Treatment

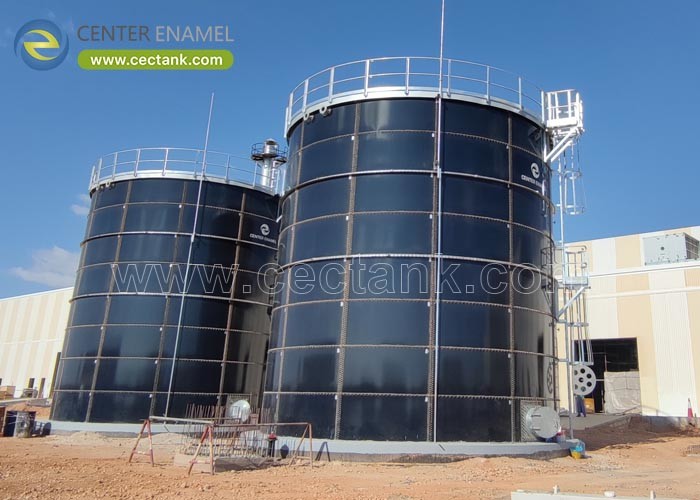

Industrial Water Tanks Introduction



Our industrial effluent tanks are also called glass fused to steel tank (GFS tanks), which is the only tank finish where two materials are fused together to achieve the best of both: the strength and flexibility of the steel combined with the corrosion resistance of the glass. The high temperature fusion of glass to steel fired at 850 degree results in an inert, durable finish. Applied to both interior and exterior, the GFS technology is able to withstand the rigorous construction site and provide many years of trouble free service in harsh environments.



Industrial Water Tanks Application



GFS tank has been widely used municipal and industrial effluent, sewage, waste water, water treatment as various aerobic and anaerobic reactors of UASB,EGSB,SBR,BAF,USR,CSTR, and equalization tank, sludge holding tank, etc.





Advantages and Benefit of Our Industrial Water Tanks (GFS tanks)



1.  Easy Installation: The industrial effluent tanks is very easy to install no need long construction period or big installation equipment.
2.  Superior corrosion resistance: The acid and alkalinity proof is PH 1- 14.
3.  Expandable and Removable: The tank volume can be easily expanded and removed.
4.  Long service life: the lifespan of our industrial effluent tanks is over 30 years.
5.  Low project cost: Easy installed. And once installed, No need frequent maintenance.
6.  Beautiful appearance: different color can be customized as you want.





Specification:



Category

Specification

Coating Color

dark green, white, blue, color can be customized upon your request

Coating Thickness

0.25~0.40mm ,double coating

Acid and alkalinity proof

Standard sheet  PH:3~11

Special sheet  PH: 1~14

Adhesion

3,450 N/cm

Elastic

Same as steel sheet,around 500 Kn /mm

Hardness

6.0 ( Mohs )

Service life

≥30Years

Holiday test

>1500v

Permeability

Gas / liquid impermeable

Easy to clean

Teh Smooth, glossy, inert, non adhesive

Corrosion resistance

Excellent.

suitable for waste water treatment, sewage treatment,

 effluent treatment.,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds
